cocos2d-x3.0+Eclipse配置說明


假如我們已經裝了JavaJDK、Cygwin,也解壓了2013-08-27之后最新的AndroidSDK,其實最新的AndroidSDK已經集成了eclipse,eclipse里面已經配置好了AndroidSDK的東西,如果我們要用到cocos2d-x3.0的話就簡單很多了。

實際上在cocos2d-x3.0的cpp工程里面就已經包含了eclipse配置說明,

如:”cocos2d-x-3.0alpha0-pre\template\multi-platform-cpp\proj.android\README.md“,用計事本打開”README.md“文件,里面內容就是用eclipse生成apk的說明文檔:

(這些英文都是比較常見的,不用再翻譯了,按照步驟操作就行了,從”#### Setup Eclipse Environment (only once)“ 開始看。。)



## Prerequisites:



* Android NDK

* Android SDK **OR** Eclipse ADT Bundle

* Android AVD target installed



## Building project



There are two ways of building Android projects.



1. Eclipse

2. Command Line



### Import Project in Eclipse



#### Features:



1. Complete workflow from Eclipse, including:

* Build C++.

* Clean C++.

* Build and Run whole project.

* Logcat view.

* Debug Java code.

* Javascript editor.

* Project management.

2. True C++ editing, including:

* Code completion.

* Jump to definition.

* Refactoring tools etc.

* Quick open C++ files.





#### Setup Eclipse Environment (only once)





**NOTE:** This step needs to be done only once to setup the Eclipse environment for cocos2d-x projects. Skip this section if you've done this before.



1. Download Eclipse ADT bundle from [Google ADT homepage](http://developer.android.com/sdk/index.html)



   **OR**



   Install Eclipse with Java. Add ADT and CDT plugins.



2. Only for Windows

    1. Install [Cygwin](http://www.cygwin.com/) with make (select make package from the list during the install).

    2. Add `Cygwin\bin` directory to system PATH variable.

    3. Add this line `none /cygdrive cygdrive binary,noacl,posix=0,user 0 0` to `Cygwin\etc\fstab` file.



3. Set up Variables:

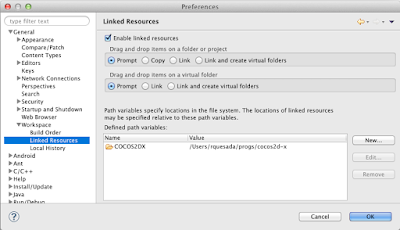

1. Path Variable `COCOS2DX`:

* Eclipse->Preferences->General->Workspace->**Linked Resources**

* Click **New** button to add a Path Variable `COCOS2DX` pointing to the root cocos2d-x directory.

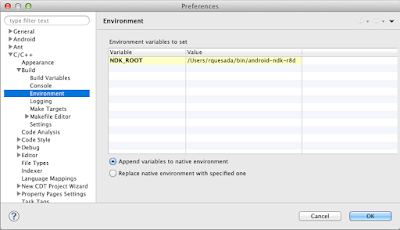

2. C/C++ Environment Variable `NDK_ROOT`:

* Eclipse->Preferences->C/C++->Build->**Environment**.

* Click **Add** button and add a new variable `NDK_ROOT` pointing to the root NDK directory.

* Only for Windows: Add new variables **CYGWIN** with value `nodosfilewarning` and **SHELLOPTS** with value `igncr`



4. Import libcocos2dx library project:

1. File->New->Project->Android Project From Existing Code.

2. Click **Browse** button and open `cocos2d-x/cocos2dx/platform/android/java` directory.

3. Click **Finish** to add project.



#### Adding and running from Eclipse

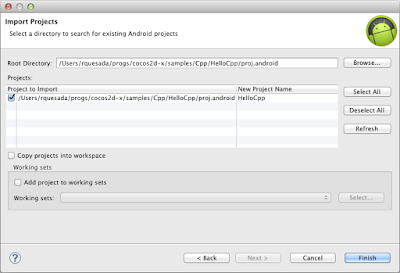

1. File->New->Project->Android Project From Existing Code

2. **Browse** to your project directory. eg: `cocos2d-x/cocos2dx/samples/Cpp/TestCpp/proj.android/`

3. Add the project

4. Click **Run** or **Debug** to compile C++ followed by Java and to run on connected device or emulator.





### Running project from Command Line



    $ cd cocos2d-x/samples/Cpp/TestCpp/proj.android/

    $ export NDK_ROOT=/path/to/ndk

    $ ./build_native.sh

    $ ant debug install



If the last command results in sdk.dir missing error then do:



    $ android list target

    $ android update project -p . -t (id from step 6)

    $ android update project -p cocos2d-x/cocos2dx/platform/android/java/ -t (id from step 6)
