matplotlib-plot-style

style

1.繪制x=1
2.不同線寬

• enumerate(Widths)
  3.線型(實線,虛線,點划線)
• linestyle
• set_dashes
  4.自動設置線顏色
  5.點的顯示形式
• marker
• markersize
• markeredgecolor
• markerfacecolor
  6.柱狀圖及其填充
• axes.bar
• axes.bar( .5+i, 1, hatch='/', color='white', edgecolor='blue',)

---

x=1

code

#!/usr/bin/env python
# -*- coding: utf-8 -*-
import numpy as np
import matplotlib
import matplotlib.pyplot as plt

#Data
Y=np.linspace(0,1,12)
X=np.ones(Y.size)

#figure
fig = plt.figure(figsize=(8,6), dpi=72, facecolor='white')
axes = plt.subplot(111)

#plot
axes.plot( (1+0)*X, Y, linewidth=0.25, color='blue')

plt.show()


Keypoints

axes.plot( (1+0)*X, Y, linewidth=0.25, color='blue')

X=[ 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1.]

Y=[ 0. 0.09090909 0.18181818 0.27272727 0.36363636 0.45454545
0.54545455 0.63636364 0.72727273 0.81818182 0.90909091 1. ]

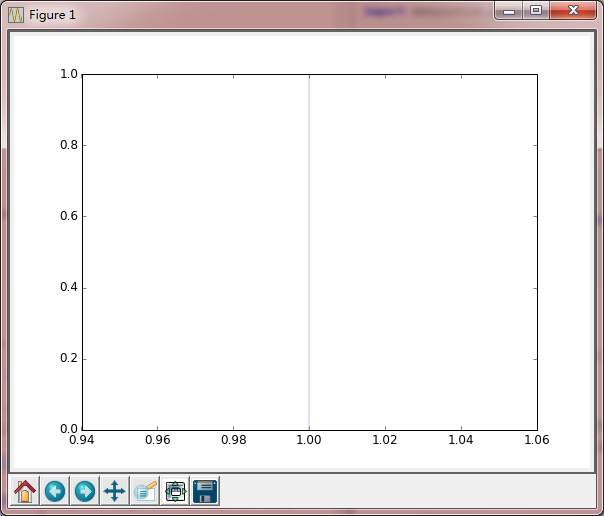

Result

---

不同線寬

code

#!/usr/bin/env python
# -*- coding: utf-8 -*-
import numpy as np
import matplotlib
import matplotlib.pyplot as plt

# Data to be represented
Y = np.linspace(0,1,12)
print Y

X = np.ones(Y.size)
print X

W = [0.25,0.50,0.75,1,2,3,4,5,6,7,8]  #linewidth
print W

# Actual plotting
fig = plt.figure(figsize=(8,6), dpi=72, facecolor='white')
axes = plt.subplot(111)

for i,w in enumerate(W):
    axes.plot( (1+i)*X, Y, linewidth=w, color='blue')

# X,Y axes lable
axes.set_xlim(0,len(W)+1)
axes.set_yticks([])
axes.set_xticks(np.arange(1,len(W)+1))
axes.set_xticklabels(['%.2f' % w for w in W])

plt.show()

Keypoints

for i,w in enumerate(W):
axes.plot( (1+i)*X, Y, linewidth=w, color='blue')

![enumerate-help.png](https://raw.githubusercontent.com/urmyfaith/urmyfaith.github.io/master/matplot/matplotGallery/images/enumerate-help.png)

繪制12條直線,X=1,...X=12

### Result

![style-02.png](https://raw.githubusercontent.com/urmyfaith/urmyfaith.github.io/master/matplot/matplotGallery/images/style-02.png)

隱藏Y軸刻度,替換X軸標簽后的圖形

![style-03.png](https://raw.githubusercontent.com/urmyfaith/urmyfaith.github.io/master/matplot/matplotGallery/images/style-03.png)

----

## 線型(實線,虛線,點划線)

### code

```python
#!/usr/bin/env python
# -*- coding: utf-8 -*-
import numpy as np
import matplotlib
import matplotlib.pyplot as plt

# Data to be represented
X = np.linspace(0,1,10)
Y = np.ones(X.size)

# Actual plotting
fig = plt.figure(figsize=(8,6), dpi=72, facecolor="white")
axes = plt.subplot(111,aspect=1)
axes.plot( X, Y*0.1, color = 'blue', linewidth=2, linestyle="-" )
axes.plot( X, Y*0.2, color = 'blue', linewidth=2, linestyle="--" )
axes.plot( X, Y*0.3, color = 'blue', linewidth=2, linestyle="-." )
axes.plot( X, Y*0.4, color = 'blue', linewidth=2, linestyle=":" )
line, = axes.plot( X, Y*0.5, color = 'blue', linewidth=2, linestyle="-" )
line.set_dashes([20,2])
line, = axes.plot( X, Y*0.6, color = 'blue', linewidth=2, linestyle="-" )
line.set_dashes([2,20])
line, = axes.plot( X, Y*0.7, color = 'blue', linewidth=2, linestyle="-" )
line.set_dashes((40,5,5,5))
line, = axes.plot( X, Y*0.8, color = 'blue', linewidth=2, linestyle="-" )
line.set_dashes((40,5,5,5,5,5))
line, = axes.plot( X, Y*0.9, color = 'blue', linewidth=2, linestyle="-" )
line.set_dashes((40,5,5,5,5,5,40,5))


axes.set_xlim(X.min(),X.max())
axes.set_ylim(0,1)
axes.set_xticks([])
axes.set_yticks(np.arange(1,10)/10.0)
axes.set_yticklabels(("-","--","-.",":",
                      "(20,2)", "(2,20)", "(40,5,5,5)",
                      "(40,5,5,5,5,5,5)", "(40,5,5,5,5,40)"))
plt.show()

Keypoints

axes.plot( X, Y*0.1, color = 'blue', linewidth=2, linestyle="-")

linestyle="-" 線型:

• --
• -.
• :

控制點划線的點,空格,划的長度:

line, = axes.plot( X, Y*0.9, color = 'blue', linewidth=2, linestyle="-" )
line.set_dashes((40,5,5,5,5,5,40,5))

40划5空格5點5空格5點5空格40划5空格

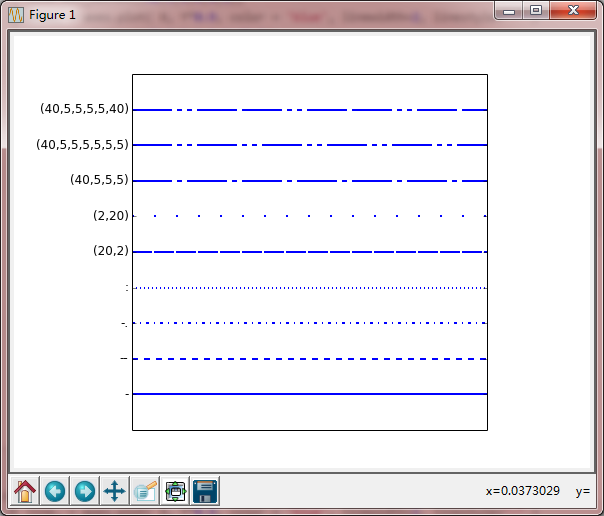

Result

---

自動設置線顏色

code

#!/usr/bin/env python
# -*- coding: utf-8 -*-
import numpy as np
import matplotlib
import matplotlib.pyplot as plt

# Data to be represented
Y = np.linspace(0,1,12)
X = np.ones(Y.size)

# Actual plotting
fig = plt.figure(figsize=(8,6), dpi=72, facecolor="white")
axes = plt.subplot(111)

lineNumbers=9
for i in range(lineNumbers):
    axes.plot( (1+i)*X, Y, linewidth=4)

axes.set_xlim(0,lineNumbers+1)
axes.set_yticks([])
axes.set_xticks(np.arange(1,lineNumbers+1))

plt.show()

Keypoints

這里用循環繪制了9條直線,但是這里是自動填充顏色的?

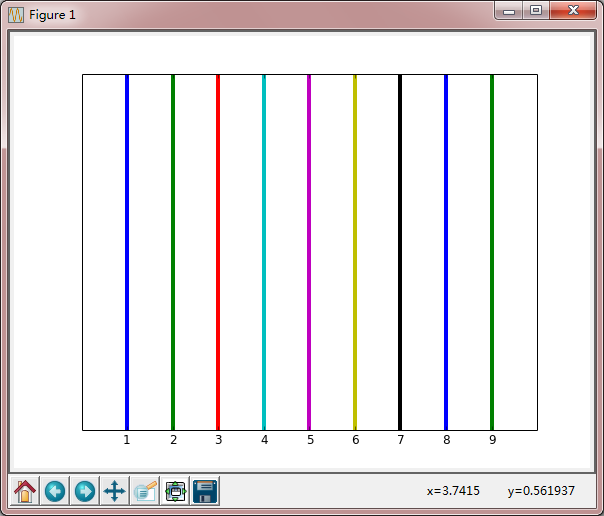

Result

---

5. 點的顯示形式

code

#!/usr/bin/env python
# -*- coding: utf-8 -*-
import numpy as np
import matplotlib
import matplotlib.pyplot as plt

# Data to be represented
Y = np.linspace(0,1,12)
X = np.ones(Y.size)
markers = ['.',',','o','v','^','<','>','1','2','3','4',
           's','p','*','h','H','+','x','D','d','|','_', r'$\clubsuit$']

# Actual plotting
fig = plt.figure(figsize=(8,6), dpi=72, facecolor="white")
axes = plt.subplot(111)
for i,marker in enumerate(markers):
    axes.plot( (1+i)*X, Y, color = '0.9', linewidth=1,
               markersize = 13, marker=marker,
               markeredgecolor = '0.10', markerfacecolor = '0.75')

axes.set_xlim(0,len(markers)+1)
axes.set_ylim(Y.min(),Y.max())
axes.set_yticks([])
axes.set_xticks(np.arange(1,len(markers)+1))
axes.set_xticklabels(markers)

plt.show()

Keypoints

   axes.plot( (1+i)*X, Y, color = '0.9', linewidth=1,
               markersize = 13, marker='x',
               markeredgecolor = '0.10', markerfacecolor = '0.75')

標記的大小,類型,邊緣顏色,前景色

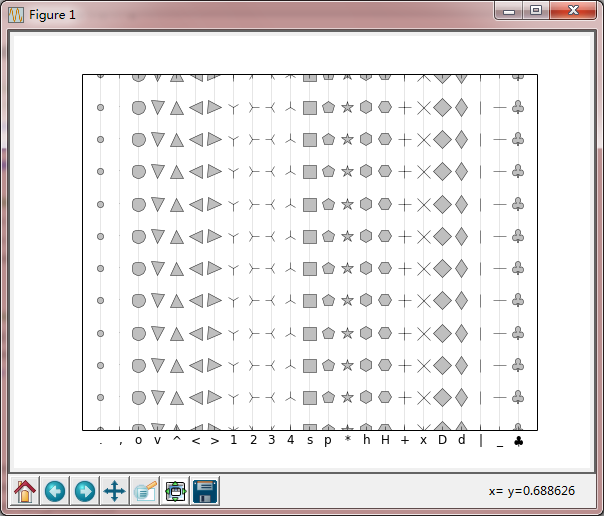

Resutl

---

6. 柱狀圖及其填充

code

#!/usr/bin/env python
# -*- coding: utf-8 -*-
import numpy as np
import matplotlib
import matplotlib.pyplot as plt

# Data to be represented
X = np.linspace(0,1,10)
Y = np.ones(X.size)
patterns = ('/','//','-', '+', 'x', '\\', '\\\\', '*', 'o', 'O', '.')

# Actual plotting
fig = plt.figure(figsize=(8,6), dpi=72, facecolor="white")
axes = plt.subplot(111)
for i,pattern in enumerate(patterns):
    axes.bar( .5+i, 1, hatch=pattern, color='white', edgecolor='blue',)

axes.set_xlim(0,len(patterns)+.5)
axes.set_ylim(0,1)

axes.set_yticks([])
axes.set_xticks(np.arange(1,len(patterns)+1))
axes.set_xticklabels(patterns)

plt.show()

Keypoints

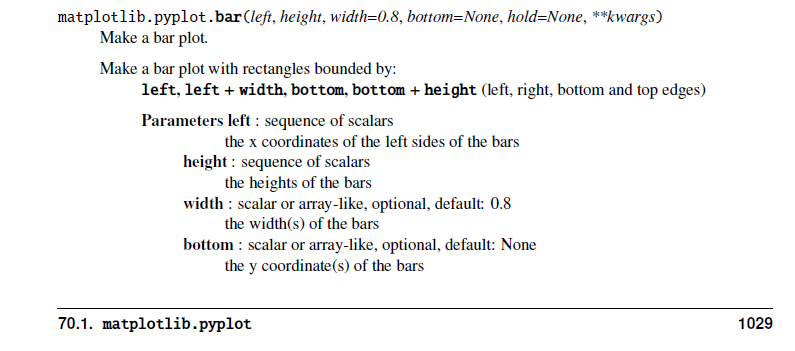

axes.bar( .5+i, 1, hatch=pattern, color='white', edgecolor='blue',)

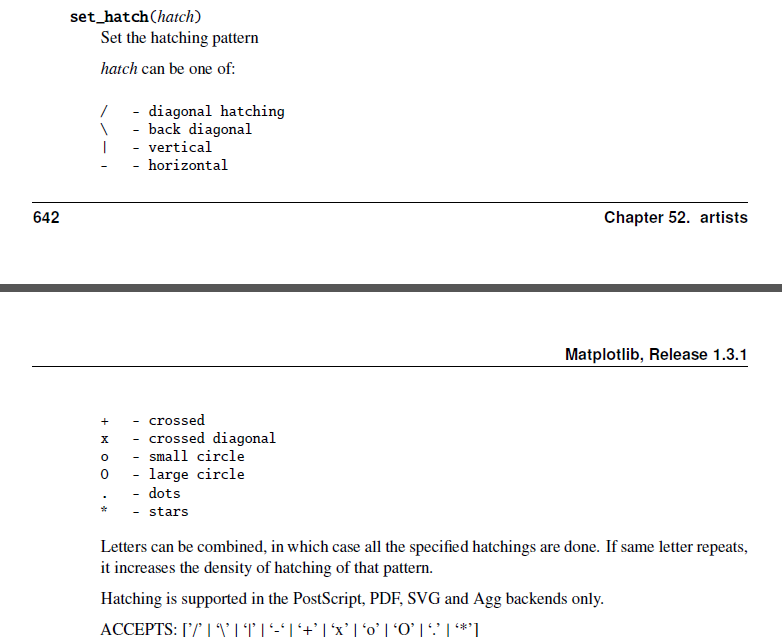

hatch,柱狀圖的填充:

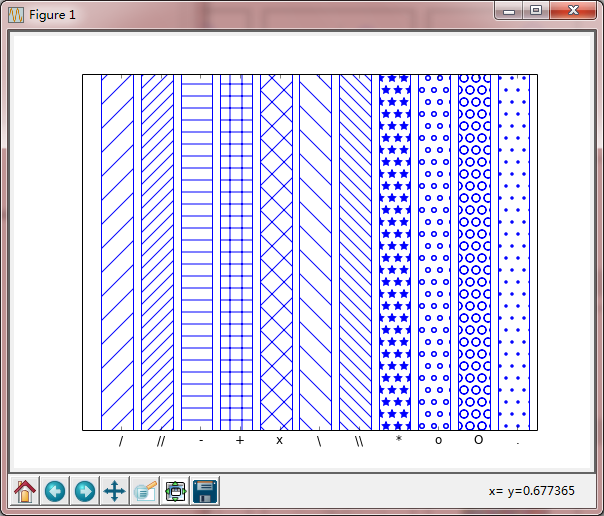

Result
