Layui 上传图片到磁盘上 + Tomcat 配置虚拟路径

Tomcat 配置虚拟路径

找到 eclipse 中 tomcat 下面的 server.xml 文件,在 Host 标签里面添加 <Context docBase="E:\upload\image\" path="/upload/image" reloadable="true"/>。
其中,docBase 表示的是图片的实际路径, path 表示的是图片的虚拟路径。

在项目根目录下面建立图片的访问路径,即 path 指向的是图片的虚拟路径,如下所示：

图片在磁盘上的实际保存地址如下：

数据库中存放图片的访问路径：

Layui 上传图片到磁盘上

index.jsp 文件

``` <%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%> <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>

大家好，我来复习springmvc了

学号	姓名	年龄	性别	班级
${student.sno }	${student.sname }	${student.age }	${student.gender }	${student.grade }

常规使用：普通图片上传

上传图片

```

StudentInfoSelect.java 文件

``` package com.libin.springmvc.controller;

import java.io.File;
import java.io.IOException;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.Random;

import javax.annotation.Resource;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.multipart.MultipartFile;

import com.libin.springmvc.entity.People;
import com.libin.springmvc.entity.Student;
import com.libin.springmvc.pub.PubConfig;
import com.libin.springmvc.service.PeopleService;
import com.libin.springmvc.service.StudentService;
import com.libin.springmvc.utils.WebUtil;

@RequestMapping("/student")
@Controller
public class StudentInfoSelect {

@Resource
private StudentService studentService;

@Resource
private PeopleService peopleService;

@Autowired
private PubConfig pubConfig;

@RequestMapping("/info")
public String studentInfo(Model model, Student student) {
	List<Student> list = studentService.findAllStudent();
	People peopleName = new People();
	peopleName.setName("Tom");
	People people = peopleService.getPeopleByName(peopleName);
	model.addAttribute("list", list);
	model.addAttribute("people", people);
	return "index";
}

@RequestMapping("/imageUpload")
public void imageUpload(HttpServletRequest request, HttpServletResponse response, MultipartFile file) {
	Map<String, Object> dataMap = new HashMap<>();
	if (!file.isEmpty()) {
		try {
			// String contextPath = PropertiesUtil.getValue("imageUploadPath") + "\\image";
			String contextPath = pubConfig.getImageUploadPath() + "\\image";
			String img = uploadFile(file, contextPath);
			String imgPath = "upload/image/" + img;
			dataMap.put("code", 0);
			dataMap.put("image", imgPath);
			People people = new People();
			people.setName("Tom");
			people.setImagepath(imgPath);
			int row = peopleService.updatePeopleImage(people);
			dataMap.put("row", row);
		} catch (Exception e) {
			dataMap.put("code", 1);
			e.printStackTrace();
		}
	}
	WebUtil.responseOutWithJson(response, dataMap);
}

public static String uploadFile(MultipartFile file, String filePath) throws IllegalStateException, IOException {
	Random r = new Random();
	String name = file.getOriginalFilename(); // 文件的真实名称
	String fileName = getShortSystemTime() + r.nextInt(99999999) + "_" + name;
	File tempFile = new File(filePath, fileName);
	if (!tempFile.getParentFile().exists()) {
		tempFile.getParentFile().mkdirs();
	}
	if (tempFile.exists()) {
		tempFile.delete();
	}
	tempFile.createNewFile();
	file.transferTo(tempFile);
	return tempFile.getName();
}

public static String getShortSystemTime() {
	SimpleDateFormat df = new SimpleDateFormat("yyyyMMddHHmmss");// 设置日期格式
	return df.format(new Date()).toString();
}

}

</div>

## 显示界面

<b style="color:red;">完整项目地址：</b>[testspringmvc](https://github.com/hglibin/shiyanlou/tree/master/testspringmvc)

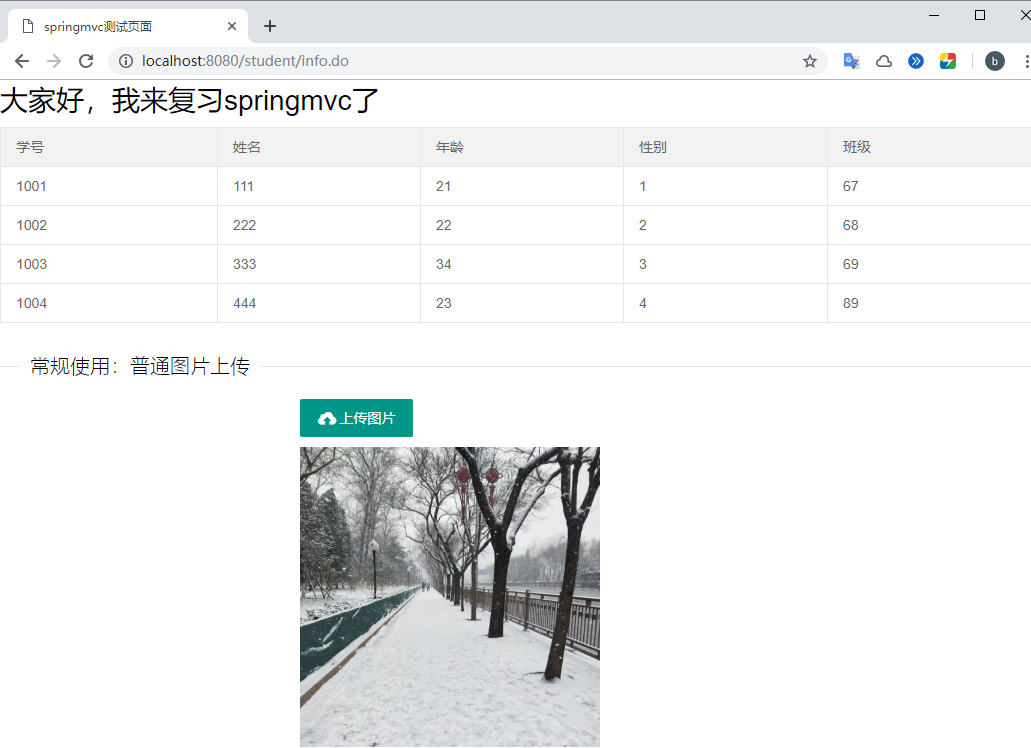

**项目运行界面如下：**

![](https://img2018.cnblogs.com/blog/1306719/201902/1306719-20190217180013870-1168345695.png)

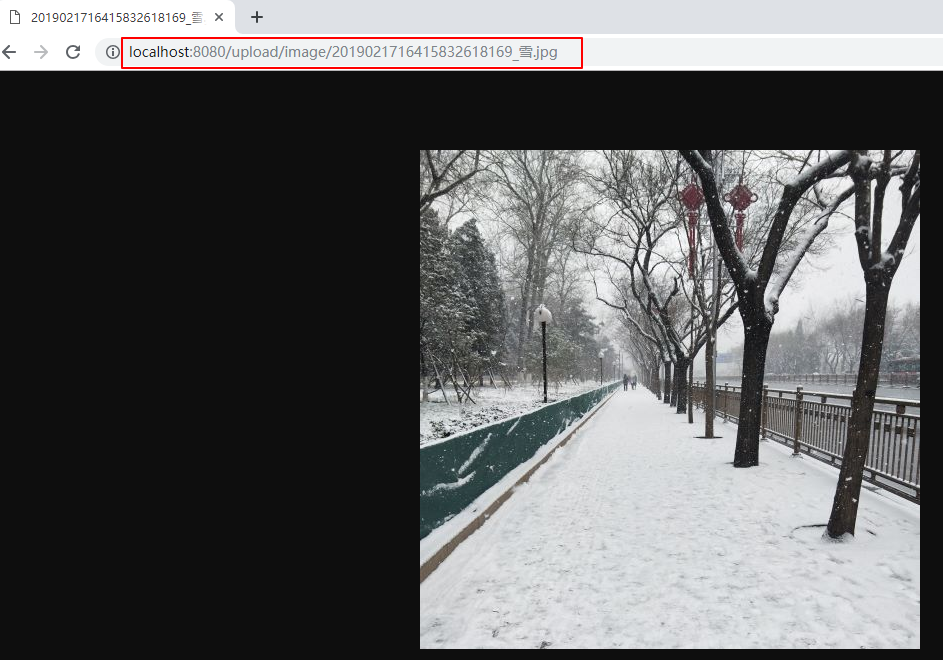

**访问图片如下：**

![](https://img2018.cnblogs.com/blog/1306719/201902/1306719-20190217180817666-727480628.png)
