一、PMM簡介
之前發布過一篇Prometheus+Grafana的文章，連接為：【DB寶36】使用Docker分分鍾搭建漂亮的prometheus+grafana監控，今天我們來介紹一下另一個監控工具：PMM。
PMM（Percona Monitoring and Management）是一個免費的開源平台，用於管理和監視數據庫性能，在docker環境中即可運行。它可以主動管理和監控MySQL（AWS RDS MySQL、Aurora MySQL、用戶自建MySQL實例）、MariaDB、MongoDB、PostgreSQL等數據庫，也可以監控ProxySQL中間件，並提供了眾多指標與多樣告警方式。
Percona Monitoring and Management (PMM)是一款開源的用於管理和監控MySQL和MongoDB性能的開源平台，通過PMM客戶端收集到的DB監控數據用第三方軟件Grafana畫圖展示出來。
PMM提供了對MyISAM、InnoDB、TokuDB和PXC/Glarera的監控，另外也提供了Query Analytics的功能，可以檢視執行了哪些SQL指令，並對執行效能較差的語法進行優化。另外在新版本還支持了MySQL復制拓撲圖結構構造。Demo官網：http://pmmdemo.percona.com
PMM針對操作系統的部份也提供了硬盤、網絡、CPU和RAM的監控，特別的是它提供了Context switches、Processes和interrupts的監控，Context Switches可以看到CPU上下切換文的狀況，Processes可以方便了解系統有多少程序在等待I/O。
PMM整體來說算是一款不錯的監控產品，針對MySQL、PG、Mongo都有很專業的指標統計，而且部署簡單整套打包到容器中。2.0之后底層持久化數據庫從MySQL更換為PG后，性能更是有很大提升。
PMM的體系結構如下所示：
二、安裝使用
https://www.percona.com/software/pmm/quickstart
https://www.percona.com/doc/percona-monitoring-and-management/2.x/
https://hub.docker.com/r/percona/pmm-server/tags
docker pull percona/pmm-server:latest
-- 拉取鏡像
docker pull percona/pmm-server:2.14
-- 創建PMM數據容器
docker rm lhr-pmm-data
docker create --name lhr-pmm-data \
-v /pmmdata \
percona/pmm-server:2.14 /bin/true
-- 創建PMM服務器容器
docker rm -f lhr-pmm-server
docker run -d --name lhr-pmm-server -h lhr-pmm-server \
-p 280:80 -p 2443:443 \
--volumes-from lhr-pmm-data \
-e SERVER_USER=lhr \
-e SERVER_PASSWORD=lhr \
-e ORCHESTRATOR_ENABLED=true \
-e METRICS_RETENTION=48h \
--restart always \
percona/pmm-server:2.14
-- 訪問web界面
http://192.168.66.35:280
https://192.168.66.35:2443
admin/admin
-- 進入PMM服務器
docker exec -it lhr-pmm-server bash
-- 連接到PMM服務器
pmm-admin config --server-insecure-tls --server-url=https://admin:admin@127.0.0.1:443
pmm-admin list
可以使用http或https訪問，端口號不一樣。
登陸之后就可以看到以下信息：
[root@lhr-pmm-server opt]# pmm-admin config --server-insecure-tls --server-url=https://admin:admin@127.0.0.1:443
Checking local pmm-agent status...
pmm-agent is running.
Registering pmm-agent on PMM Server...
Registered.
Configuration file /usr/local/percona/pmm2/config/pmm-agent.yaml updated.
Reloading pmm-agent configuration...
Configuration reloaded.
Checking local pmm-agent status...
pmm-agent is running.
[root@lhr-pmm-server opt]# pmm-admin list
Service type Service name Address and port Service ID
Agent type Status Metrics Mode Agent ID Service ID
pmm_agent Connected /agent_id/57124a26-ea3e-4240-b39d-ec91af80e559
node_exporter Running push /agent_id/fed6ce91-c926-49d1-8bcb-17a8e3225f78
vmagent Running push /agent_id/cbd8515c-d655-4467-a6bd-42c9db580ff2
三、監控MySQL數據庫
可以添加多個被監控實例，執行過程：
[root@lhr-pmm-server opt]# pmm-admin add mysql --query-source=perfschema --username=root --password=lhr --host=192.168.66.35 --port=3317 --service-name=mysql-192.168.66.35-3317
MySQL Service added.
Service ID : /service_id/28cd296f-597a-4043-8c87-792308b31d37
Service name: mysql-192.168.66.35-3317
Table statistics collection enabled (the limit is 1000, the actual table count is 535).
[root@lhr-pmm-server opt]# pmm-admin add mysql --query-source=perfschema --username=root --password=lhr --host=192.168.66.35 --port=3318 --service-name=mysql-192.168.66.35-3318
MySQL Service added.
Service ID : /service_id/aceb0ad7-86c6-4ec8-9c45-8fe7f4135721
Service name: mysql-192.168.66.35-3318
Table statistics collection disabled (the limit is 1000, the actual table count is 1042).
[root@lhr-pmm-server opt]# pmm-admin list
Service type Service name Address and port Service ID
MySQL mysql-192.168.66.35-3317 192.168.66.35:3317 /service_id/28cd296f-597a-4043-8c87-792308b31d37
MySQL mysql-192.168.66.35-3318 192.168.66.35:3318 /service_id/aceb0ad7-86c6-4ec8-9c45-8fe7f4135721
Agent type Status Metrics Mode Agent ID Service ID
pmm_agent Connected /agent_id/57124a26-ea3e-4240-b39d-ec91af80e559
node_exporter Running push /agent_id/fed6ce91-c926-49d1-8bcb-17a8e3225f78
mysqld_exporter Running push /agent_id/5a8f8a51-c342-4108-8f94-1779e00ed118 /service_id/aceb0ad7-86c6-4ec8-9c45-8fe7f4135721
mysqld_exporter Running push /agent_id/b8342bd9-0c20-40d6-a666-b6b79903f5e8 /service_id/28cd296f-597a-4043-8c87-792308b31d37
mysql_perfschema_agent Running /agent_id/908ad693-b9a2-43a9-abd2-f0d06ca1ca09 /service_id/28cd296f-597a-4043-8c87-792308b31d37
mysql_perfschema_agent Running /agent_id/f965b782-76eb-49e8-874c-df52d47c7cb7 /service_id/aceb0ad7-86c6-4ec8-9c45-8fe7f4135721
vmagent Running push /agent_id/cbd8515c-d655-4467-a6bd-42c9db580ff2
PMM監控界面：
MySQL慢查詢分析
PMM能對慢查詢進行監控分析：
四、監控PG數據庫
PMM服務器的后端元數據存儲用的是PG數據庫，所以，我們可以直接監控該庫：
[root@lhr-pmm-server opt]# pmm-admin add postgresql --username=pmm-managed --password=pmm-managed --host=127.0.0.1 --port=5432 --service-name=PG-127.0.0.1-5432
PostgreSQL Service added.
Service ID : /service_id/cb3c1b6d-fea0-4a81-9dcb-2c1840fc547b
Service name: PG-127.0.0.1-5432
[root@lhr-pmm-server opt]# pmm-admin list
Service type Service name Address and port Service ID
MySQL mysql-192.168.66.35-3317 192.168.66.35:3317 /service_id/28cd296f-597a-4043-8c87-792308b31d37
MySQL mysql-192.168.66.35-3318 192.168.66.35:3318 /service_id/aceb0ad7-86c6-4ec8-9c45-8fe7f4135721
PostgreSQL PG-127.0.0.1-5432 127.0.0.1:5432 /service_id/cb3c1b6d-fea0-4a81-9dcb-2c1840fc547b
Agent type Status Metrics Mode Agent ID Service ID
pmm_agent Connected /agent_id/57124a26-ea3e-4240-b39d-ec91af80e559
node_exporter Running push /agent_id/fed6ce91-c926-49d1-8bcb-17a8e3225f78
mysqld_exporter Running push /agent_id/5a8f8a51-c342-4108-8f94-1779e00ed118 /service_id/aceb0ad7-86c6-4ec8-9c45-8fe7f4135721
mysqld_exporter Running push /agent_id/b8342bd9-0c20-40d6-a666-b6b79903f5e8 /service_id/28cd296f-597a-4043-8c87-792308b31d37
postgres_exporter Running push /agent_id/28bfba92-4872-4cd9-b3a1-5273670a44a2 /service_id/cb3c1b6d-fea0-4a81-9dcb-2c1840fc547b
mysql_perfschema_agent Running /agent_id/908ad693-b9a2-43a9-abd2-f0d06ca1ca09 /service_id/28cd296f-597a-4043-8c87-792308b31d37
mysql_perfschema_agent Running /agent_id/f965b782-76eb-49e8-874c-df52d47c7cb7 /service_id/aceb0ad7-86c6-4ec8-9c45-8fe7f4135721
postgresql_pgstatements_agent Running /agent_id/5cf99a1b-b474-48a9-94ad-acc6bdc77efb /service_id/cb3c1b6d-fea0-4a81-9dcb-2c1840fc547b
vmagent Running push /agent_id/cbd8515c-d655-4467-a6bd-42c9db580ff2
PMM監控界面：
五、監控MongoDB數據庫
使用PMM監視集群時，應使用pmm-admin add命令啟用對每個實例的監視，這包括分片集群中的副本集、mongos和所有配置服務器。
-- 無密碼
pmm-admin add mongodb --host=192.168.66.35 --port=27017 --service-name=mongodb-192.168.66.35-27017
-- 有密碼
pmm-admin add mongodb --username=root --password=lhr mongodb-192.168.66.35-37017 192.168.66.35:37017
pmm-admin add mongodb --username=root --password=lhr --host=192.168.66.35 --port=37017 --service-name=mongodb-192.168.66.35-37017
-- 集群、復制集
pmm-admin add mongodb --cluster lhr-mongo-cluster --replication-set=lhr_rep --username=root --password=lhr --host=192.168.66.35 --port=37020 --service-name=mongodb-192.168.66.35-37020-lhr_rep
pmm-admin add mongodb --cluster lhr-mongo-cluster --replication-set=lhr_rep --username=root --password=lhr --host=192.168.66.35 --port=37021 --service-name=mongodb-192.168.66.35-37021-lhr_rep
pmm-admin add mongodb --cluster lhr-mongo-cluster --replication-set=lhr_rep --username=root --password=lhr --host=192.168.66.35 --port=37022 --service-name=mongodb-192.168.66.35-37022-lhr_rep
pmm-admin add mongodb --cluster lhr-mongo-cluster --replication-set=lhr_rep --username=root --password=lhr --host=192.168.66.35 --port=37023 --service-name=mongodb-192.168.66.35-37023-lhr_rep
pmm-admin add mongodb --cluster lhr-mongo-cluster --replication-set=lhr_rep --username=root --password=lhr --host=192.168.66.35 --port=37024 --service-name=mongodb-192.168.66.35-37024-lhr_rep
-- 查詢
pmm-admin list
添加完成后：
[root@lhr-pmm-server opt]# pmm-admin list
Service type Service name Address and port Service ID
MySQL mysql-192.168.66.35-3317 192.168.66.35:3317 /service_id/3d97792c-928c-4475-b5f3-f619d3b976e1
MySQL mysql-192.168.66.35-3316 192.168.66.35:3316 /service_id/4247b3f3-0b7c-48c6-aa72-3545a07d71c9
MySQL mysql-192.168.66.35-3315 192.168.66.35:3315 /service_id/5318af15-e338-4628-a7ba-19e2f510239d
MySQL mysql-192.168.66.35-3318 192.168.66.35:3318 /service_id/e527f5f2-e6f4-4eb9-9c73-86469fbf08e8
MongoDB mongodb-192.168.66.35-37024-lhr_rep 192.168.66.35:37024 /service_id/04e6a8b3-cb60-4a51-ae33-d67190a1da90
MongoDB mongodb-192.168.66.35-27017 192.168.66.35:27017 /service_id/11d684d1-f851-48f7-aec2-809814d073d2
MongoDB mongodb-192.168.66.35-37021-lhr_rep 192.168.66.35:37021 /service_id/178fb790-6e89-478e-b3c3-d50cdb158bcf
MongoDB mongodb-192.168.66.35-37020-lhr_rep 192.168.66.35:37020 /service_id/333c1bfa-6c51-4b57-9002-9bc9cca41880
MongoDB mongodb-192.168.66.35-37022-lhr_rep 192.168.66.35:37022 /service_id/7f8a5062-0e78-4078-80e1-f8a70f2d2b0a
MongoDB mongodb-192.168.66.35-37017 192.168.66.35:37017 /service_id/924ec922-3d7d-4b53-9bfc-aa9345109dda
MongoDB mongodb-192.168.66.35-37023-lhr_rep 192.168.66.35:37023 /service_id/c2ee5791-9d23-41ee-af7d-d21b50c2dd77
PostgreSQL PG-127.0.0.1-5432 127.0.0.1:5432 /service_id/278f216a-c3d5-43fd-9163-e7a30dd459e1
Agent type Status Metrics Mode Agent ID Service ID
pmm_agent Connected /agent_id/f304147a-43a6-484b-9d32-d8f3c721cb63
node_exporter Running push /agent_id/89311eaa-bf62-4730-8f3b-ebddb9ddfe57
mysqld_exporter Running push /agent_id/13bca963-69be-4313-b6b4-ed4234c0abb5 /service_id/3d97792c-928c-4475-b5f3-f619d3b976e1
mysqld_exporter Running push /agent_id/29177549-d624-43dd-ae28-f29e913587d0 /service_id/e527f5f2-e6f4-4eb9-9c73-86469fbf08e8
mysqld_exporter Running push /agent_id/ee281335-8d7b-47fd-91a9-873062beff2d /service_id/4247b3f3-0b7c-48c6-aa72-3545a07d71c9
mysqld_exporter Running push /agent_id/fc3fad17-4dd1-4ae7-aa4e-22cce69dfe02 /service_id/5318af15-e338-4628-a7ba-19e2f510239d
mongodb_exporter Running push /agent_id/690ab339-5838-43c5-978e-73bb188d434a /service_id/7f8a5062-0e78-4078-80e1-f8a70f2d2b0a
mongodb_exporter Running push /agent_id/69905494-247a-41d1-b45f-a8e31639baf9 /service_id/333c1bfa-6c51-4b57-9002-9bc9cca41880
mongodb_exporter Running push /agent_id/7d97045e-afae-4e05-8216-5fbf5f28a74b /service_id/924ec922-3d7d-4b53-9bfc-aa9345109dda
mongodb_exporter Running push /agent_id/860ed641-3599-4fdc-9f57-8137d45f06b8 /service_id/11d684d1-f851-48f7-aec2-809814d073d2
mongodb_exporter Running push /agent_id/87be410e-dd68-4ce2-80fa-05d7827b5300 /service_id/178fb790-6e89-478e-b3c3-d50cdb158bcf
mongodb_exporter Running push /agent_id/c5f4b04a-3520-4355-aca5-7e41646883c5 /service_id/c2ee5791-9d23-41ee-af7d-d21b50c2dd77
mongodb_exporter Running push /agent_id/c78247a4-1a66-410d-bb18-7032f9fa016b /service_id/04e6a8b3-cb60-4a51-ae33-d67190a1da90
postgres_exporter Running push /agent_id/e6f7e9f2-2657-48ac-9fb0-ef7e4bd5a547 /service_id/278f216a-c3d5-43fd-9163-e7a30dd459e1
mysql_perfschema_agent Waiting /agent_id/100d98c1-3b3d-4dee-8bc1-843495ed529a /service_id/5318af15-e338-4628-a7ba-19e2f510239d
mysql_perfschema_agent Running /agent_id/9827db00-7a69-4d05-9295-85c06fb2ebc3 /service_id/3d97792c-928c-4475-b5f3-f619d3b976e1
mysql_perfschema_agent Running /agent_id/e3e3890c-cbbd-4e05-8e23-ba4e624f78a5 /service_id/4247b3f3-0b7c-48c6-aa72-3545a07d71c9
mysql_perfschema_agent Running /agent_id/fa3201ca-b5d8-46aa-9e04-f1b5102e6336 /service_id/e527f5f2-e6f4-4eb9-9c73-86469fbf08e8
mongodb_profiler_agent Running /agent_id/4887dbdf-e603-45d7-af74-a9067cbe56c8 /service_id/11d684d1-f851-48f7-aec2-809814d073d2
mongodb_profiler_agent Running /agent_id/4e51521d-ea16-4dd5-a3e2-940c717a3e53 /service_id/c2ee5791-9d23-41ee-af7d-d21b50c2dd77
mongodb_profiler_agent Running /agent_id/5cd5dee9-e158-43a0-9511-ad4c7b2d9e47 /service_id/7f8a5062-0e78-4078-80e1-f8a70f2d2b0a
mongodb_profiler_agent Running /agent_id/807b4342-735c-4816-b491-e3cbbf4170bd /service_id/178fb790-6e89-478e-b3c3-d50cdb158bcf
mongodb_profiler_agent Running /agent_id/c2737dd5-7ec4-47fe-aa66-68209d4f3225 /service_id/924ec922-3d7d-4b53-9bfc-aa9345109dda
mongodb_profiler_agent Running /agent_id/c8511980-db30-476a-8776-7aa14a32eebf /service_id/04e6a8b3-cb60-4a51-ae33-d67190a1da90
mongodb_profiler_agent Running /agent_id/fc4a0fa5-9fb4-4ba3-99d9-3d9c30d443e3 /service_id/333c1bfa-6c51-4b57-9002-9bc9cca41880
postgresql_pgstatements_agent Running /agent_id/e00bddb3-ef8e-4f74-9c9b-98e6b274769d /service_id/278f216a-c3d5-43fd-9163-e7a30dd459e1
vmagent Running push /agent_id/4b564af7-7775-4337-86cf-950daeabb354

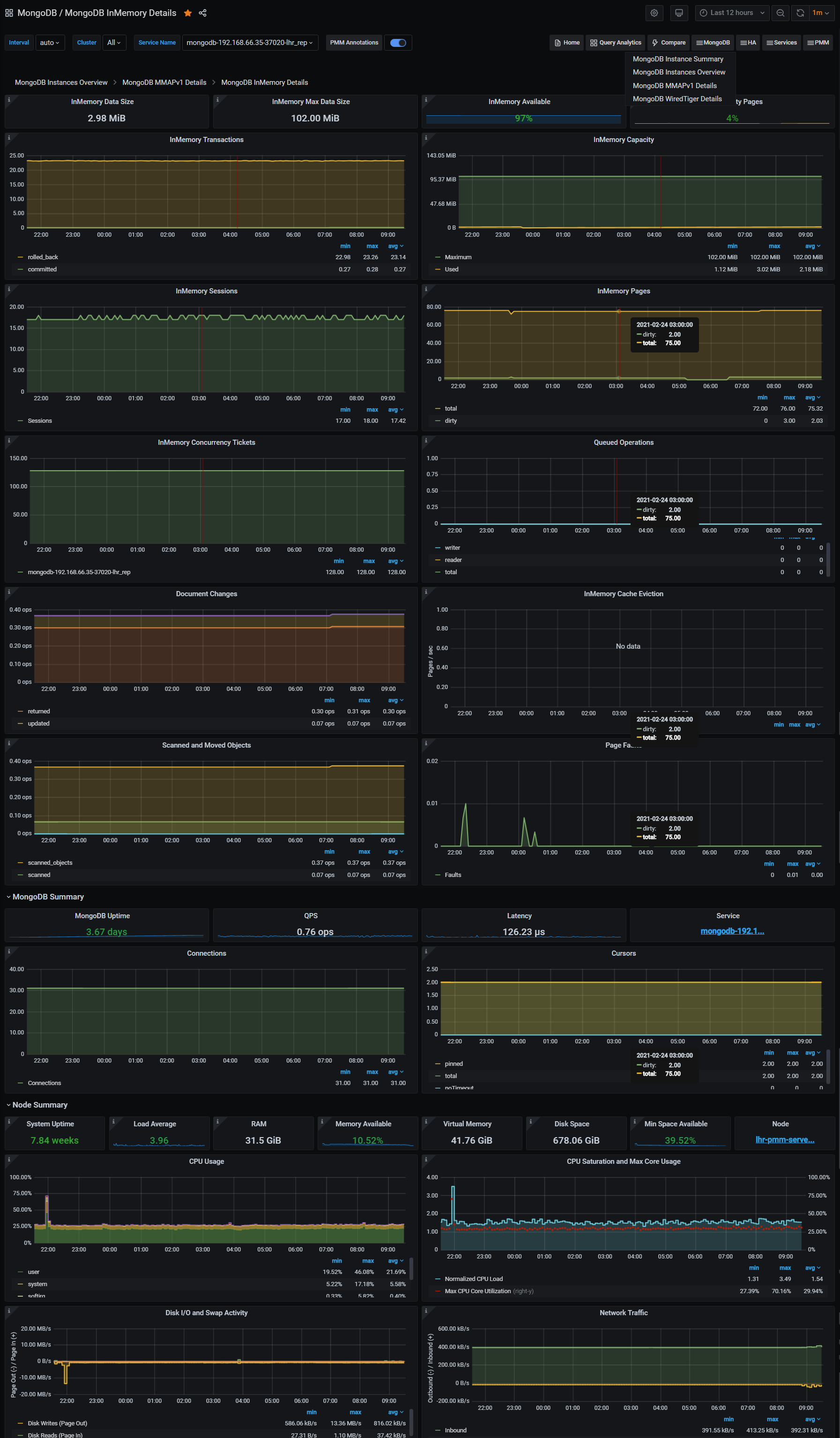

PMM監控界面：
監控內容較多，可以自行點擊查看：
六、監控ProxySQL中間件
[root@lhr-pmm-server opt]# pmm-admin add proxysql --username=root --password=lhr --host=192.168.66.35 --port=16032 --service-name=proxysql-192.168.66.35-16032
ProxySQL Service added.
Service ID : /service_id/84d87f04-e701-4480-abc9-bde170bfd478
Service name: proxysql-192.168.66.35-16032
[root@lhr-pmm-server opt]# pmm-admin list
Service type Service name Address and port Service ID
MySQL mysql-192.168.66.35-3317 192.168.66.35:3317 /service_id/3d97792c-928c-4475-b5f3-f619d3b976e1
MySQL mysql-192.168.66.35-3316 192.168.66.35:3316 /service_id/4247b3f3-0b7c-48c6-aa72-3545a07d71c9
MySQL mysql-192.168.66.35-3315 192.168.66.35:3315 /service_id/5318af15-e338-4628-a7ba-19e2f510239d
MySQL mysql-192.168.66.35-3318 192.168.66.35:3318 /service_id/e527f5f2-e6f4-4eb9-9c73-86469fbf08e8
MongoDB mongodb-192.168.66.35-37024-lhr_rep 192.168.66.35:37024 /service_id/04e6a8b3-cb60-4a51-ae33-d67190a1da90
MongoDB mongodb-192.168.66.35-27017 192.168.66.35:27017 /service_id/11d684d1-f851-48f7-aec2-809814d073d2
MongoDB mongodb-192.168.66.35-37021-lhr_rep 192.168.66.35:37021 /service_id/178fb790-6e89-478e-b3c3-d50cdb158bcf
MongoDB mongodb-192.168.66.35-37020-lhr_rep 192.168.66.35:37020 /service_id/333c1bfa-6c51-4b57-9002-9bc9cca41880
MongoDB mongodb-192.168.66.35-37022-lhr_rep 192.168.66.35:37022 /service_id/7f8a5062-0e78-4078-80e1-f8a70f2d2b0a
MongoDB mongodb-192.168.66.35-37017 192.168.66.35:37017 /service_id/924ec922-3d7d-4b53-9bfc-aa9345109dda
MongoDB mongodb-192.168.66.35-37023-lhr_rep 192.168.66.35:37023 /service_id/c2ee5791-9d23-41ee-af7d-d21b50c2dd77
PostgreSQL PG-127.0.0.1-5432 127.0.0.1:5432 /service_id/278f216a-c3d5-43fd-9163-e7a30dd459e1
ProxySQL proxysql-192.168.66.35-16032 192.168.66.35:16032 /service_id/f43ada33-f77d-4cbf-9c98-331b7ba2310e
Agent type Status Metrics Mode Agent ID Service ID
pmm_agent Connected /agent_id/f304147a-43a6-484b-9d32-d8f3c721cb63
node_exporter Running push /agent_id/89311eaa-bf62-4730-8f3b-ebddb9ddfe57
mysqld_exporter Running push /agent_id/13bca963-69be-4313-b6b4-ed4234c0abb5 /service_id/3d97792c-928c-4475-b5f3-f619d3b976e1
mysqld_exporter Running push /agent_id/29177549-d624-43dd-ae28-f29e913587d0 /service_id/e527f5f2-e6f4-4eb9-9c73-86469fbf08e8
mysqld_exporter Running push /agent_id/ee281335-8d7b-47fd-91a9-873062beff2d /service_id/4247b3f3-0b7c-48c6-aa72-3545a07d71c9
mysqld_exporter Running push /agent_id/fc3fad17-4dd1-4ae7-aa4e-22cce69dfe02 /service_id/5318af15-e338-4628-a7ba-19e2f510239d
mongodb_exporter Running push /agent_id/690ab339-5838-43c5-978e-73bb188d434a /service_id/7f8a5062-0e78-4078-80e1-f8a70f2d2b0a
mongodb_exporter Running push /agent_id/69905494-247a-41d1-b45f-a8e31639baf9 /service_id/333c1bfa-6c51-4b57-9002-9bc9cca41880
mongodb_exporter Running push /agent_id/7d97045e-afae-4e05-8216-5fbf5f28a74b /service_id/924ec922-3d7d-4b53-9bfc-aa9345109dda
mongodb_exporter Running push /agent_id/860ed641-3599-4fdc-9f57-8137d45f06b8 /service_id/11d684d1-f851-48f7-aec2-809814d073d2
mongodb_exporter Running push /agent_id/87be410e-dd68-4ce2-80fa-05d7827b5300 /service_id/178fb790-6e89-478e-b3c3-d50cdb158bcf
mongodb_exporter Running push /agent_id/c5f4b04a-3520-4355-aca5-7e41646883c5 /service_id/c2ee5791-9d23-41ee-af7d-d21b50c2dd77
mongodb_exporter Running push /agent_id/c78247a4-1a66-410d-bb18-7032f9fa016b /service_id/04e6a8b3-cb60-4a51-ae33-d67190a1da90
postgres_exporter Running push /agent_id/e6f7e9f2-2657-48ac-9fb0-ef7e4bd5a547 /service_id/278f216a-c3d5-43fd-9163-e7a30dd459e1
proxysql_exporter Running push /agent_id/86664e69-156a-487d-aaa0-9ab585befb99 /service_id/f43ada33-f77d-4cbf-9c98-331b7ba2310e
mysql_perfschema_agent Waiting /agent_id/100d98c1-3b3d-4dee-8bc1-843495ed529a /service_id/5318af15-e338-4628-a7ba-19e2f510239d
mysql_perfschema_agent Running /agent_id/9827db00-7a69-4d05-9295-85c06fb2ebc3 /service_id/3d97792c-928c-4475-b5f3-f619d3b976e1
mysql_perfschema_agent Running /agent_id/e3e3890c-cbbd-4e05-8e23-ba4e624f78a5 /service_id/4247b3f3-0b7c-48c6-aa72-3545a07d71c9
mysql_perfschema_agent Running /agent_id/fa3201ca-b5d8-46aa-9e04-f1b5102e6336 /service_id/e527f5f2-e6f4-4eb9-9c73-86469fbf08e8
mongodb_profiler_agent Running /agent_id/4887dbdf-e603-45d7-af74-a9067cbe56c8 /service_id/11d684d1-f851-48f7-aec2-809814d073d2
mongodb_profiler_agent Running /agent_id/4e51521d-ea16-4dd5-a3e2-940c717a3e53 /service_id/c2ee5791-9d23-41ee-af7d-d21b50c2dd77
mongodb_profiler_agent Running /agent_id/5cd5dee9-e158-43a0-9511-ad4c7b2d9e47 /service_id/7f8a5062-0e78-4078-80e1-f8a70f2d2b0a
mongodb_profiler_agent Running /agent_id/807b4342-735c-4816-b491-e3cbbf4170bd /service_id/178fb790-6e89-478e-b3c3-d50cdb158bcf
mongodb_profiler_agent Running /agent_id/c2737dd5-7ec4-47fe-aa66-68209d4f3225 /service_id/924ec922-3d7d-4b53-9bfc-aa9345109dda
mongodb_profiler_agent Running /agent_id/c8511980-db30-476a-8776-7aa14a32eebf /service_id/04e6a8b3-cb60-4a51-ae33-d67190a1da90
mongodb_profiler_agent Running /agent_id/fc4a0fa5-9fb4-4ba3-99d9-3d9c30d443e3 /service_id/333c1bfa-6c51-4b57-9002-9bc9cca41880
postgresql_pgstatements_agent Running /agent_id/e00bddb3-ef8e-4f74-9c9b-98e6b274769d /service_id/278f216a-c3d5-43fd-9163-e7a30dd459e1
vmagent Running push /agent_id/4b564af7-7775-4337-86cf-950daeabb354
PMM默認沒有ProxySQL的監控模板，需要我們自行下載：https://github.com/percona/grafana-dashboards/blob/master/dashboards/ProxySQL_Overview.json
下載后上傳到PMM的監控界面中就可以了。
監控后的界面：
About Me
● 本文作者：小麥苗，部分內容整理自網絡，若有侵權請聯系小麥苗刪除
● 本文在個人微 信公眾號（DB寶）上有同步更新
● QQ群號： 230161599 、618766405，微信群私聊
● 個人QQ號（646634621），微 信號（db_bao），注明添加緣由
● 於 2021年3月 在西安完成
● 最新修改時間：2021年3月
● 版權所有，歡迎分享本文，轉載請保留出處
●小麥苗的微店： https://weidian.com/?userid=793741433
●小麥苗出版的數據庫類叢書： http://blog.itpub.net/26736162/viewspace-2142121/
●小麥苗OCP、OCM、高可用、DBA學習班（Oracle、MySQL、NoSQL）： http://blog.itpub.net/26736162/viewspace-2148098/
●數據庫筆試面試題庫及解答： https://mp.weixin.qq.com/s/Vm5PqNcDcITkOr9cQg6T7w
使用微信客戶端掃描下面的二維碼來關注小麥苗的微信公眾號（DB寶）及QQ群（DBA寶典）、添加小麥苗微信， 學習最實用的數據庫技術。
