07-kubernetes Ingress 原理和 Ingress-nginx 案例

本文轉載自查看原文 2019-08-01 13:32 1462 kubernetes

Service 類型
namespace 名稱空間
Ingress Controller
Ingress
- Ingress-nginx 進行測試
- 模擬測試 Ingress 后端 Tomcat 訪問
模擬測試 Https

Service 類型

ClusterIP 只在集群內部訪問，無法跨越集群邊界
NodePort 提供集群外部流量進入到集群內部
LoadBalancer 集群部署在公有雲或私有雲之上，提供給公有雲或私有雲的負載均衡中間使用
ExternelName 把集群外部的服務映射給集群內部使用，是一個FQDN的名稱，一個CNAME名稱，這個CNAM指向公網的FQDN

No ClusterIP 成為 Headless Sercie

ServiceName -> PodIP

Service 是一個四層調度器

也就是說，當請求為HTTPS請求的時候，則無法卸載證書。

namespace 名稱空間

；
創建 namespace 如下：

[root@master manifests]# kubectl create namespace dev
namespace/dev created
[root@master manifests]# kubectl get ns
NAME              STATUS   AGE
default           Active   20d
dev               Active   4s       # 新創建的namespace
kube-node-lease   Active   20d
kube-public       Active   20d
kube-system       Active   20d

刪除 namespace 如下：

[root@master manifests]# kubectl delete ns/dev
namespace "dev" deleted
[root@master manifests]# kubectl get ns
NAME              STATUS   AGE
default           Active   20d
kube-node-lease   Active   20d
kube-public       Active   20d
kube-system       Active   20d

Ingress Controller

舉例

當kubernetes集群有上千甚至跟多個節點的時候，此時需要特有的web七層代理
如在集群其中的四個節點上打上污點，這四個節點上只運行web七層代理所對應的Pod
由此Pod來代理集群內部的Service，Service再把流量轉發給集群內部對應的Pod。

這就叫做 Ingress Controller

Ingress Controller 是基於 DaemonSet 控制器來實現。

DaemonSet 是實現保證集群內部每個節點上都運行一個指定的Pod。

Kubernetes 中三種常用七層代理:

Nginx # 常規代理
Traefik # 微服務前段負載均衡
Envoy # 微服務代理負載均衡，使用的多

Ingress

Ingress 和 Ingress Controller 是兩回事。

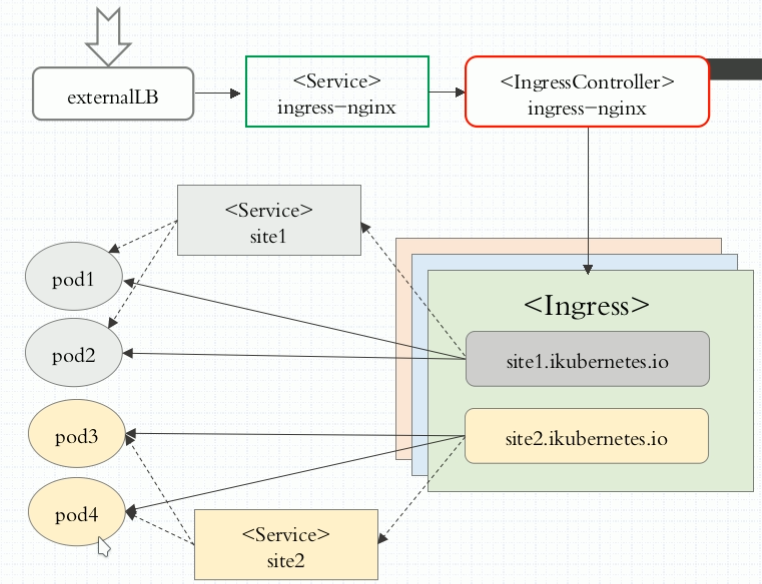

Ingress 原理

Ingress 啟動一個獨立的Pod來運行七層代理，可以是 Nginx 、 Traefik 或者是 Envoy，此時 ingress Pod 會直接代理后端運行服務的 Pod，為了能監聽后端Pod的變化，需要一個無頭Service Headless Sercie 通過標簽選擇器來選擇后端指定的Pod，並收集到后端Pod 對應的IP，而此Service不會被使用，它主要是用於被Ingress Pod 來監聽后端Pod的變化，而一旦后端Pod產生變化，無頭Service 會知道，此時被Ingress Pod 發現后，會自動根據變化來更改配置文件，並重載。

如果此時使用的是 Nginx 類型的 Ingress Pod ，則每次變化后修改配置文件后都會自動重新 reload。
但如果使用 Traefik 或者是 Envoy 天生就是為微服務開發的，更友好的支持。

Ingress

Ingress-nginx 進行測試

可以在 GitHub 上找到Ingress-nginx

本次使用的是相對簡單部署 ingress-nginx 的配置清單。

ingress-nginx 單獨的詳情頁面

因為是直接在物理機上直接安裝的kubernetes集群，所以需要兩個配置清單。

[root@master ingress]#  kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/master/deploy/static/mandatory.yaml
namespace/ingress-nginx created
configmap/nginx-configuration created
configmap/tcp-services created
configmap/udp-services created
serviceaccount/nginx-ingress-serviceaccount created
clusterrole.rbac.authorization.k8s.io/nginx-ingress-clusterrole created
role.rbac.authorization.k8s.io/nginx-ingress-role created
rolebinding.rbac.authorization.k8s.io/nginx-ingress-role-nisa-binding created
clusterrolebinding.rbac.authorization.k8s.io/nginx-ingress-clusterrole-nisa-binding created
deployment.apps/nginx-ingress-controller created

還需要一個Ingress-name名稱空間中創建的NodePort Service，以便引入集群外流量

需要根據實際情況修改一下：

[root@master ingress]# wget https://raw.githubusercontent.com/kubernetes/ingress-nginx/master/deploy/static/provider/baremetal/service-nodeport.yaml
[root@master ingress]# cat service-nodeport.yaml
apiVersion: v1
kind: Service
metadata:
  name: ingress-nginx
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
spec:
  type: NodePort
  ports:
    - name: http
      port: 80
      targetPort: 80
      protocol: TCP
      nodePort: 30080       # 手動指定node對外的http端口
    - name: https
      port: 443
      targetPort: 443
      protocol: TCP
      nodePort: 30443       # 手動指定node對外的https端口
  selector:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx

[root@master ingress]#kubectl apply -f service-nodeport.yaml
service/ingress-nginx created

查看創建的ingress-nginx Pod

[root@master ingress]# kubectl get pods -n ingress-nginx -o wide
NAME                                        READY   STATUS    RESTARTS   AGE   IP            NODE                NOMINATED NODE   READINESS GATES
nginx-ingress-controller-7995bd9c47-b4fzh   1/1     Running   0          34s   10.244.1.27   node03.kubernetes   <none>           <none>
[root@master ingress]# kubectl get svc -n ingress-nginx     # 這里是第二次執行在Ingress-name名稱空間中創建的NodePort Service，以便引入集群外流量
NAME            TYPE       CLUSTER-IP       EXTERNAL-IP   PORT(S)                      AGE
ingress-nginx   NodePort   10.111.201.108   <none>        80:30080/TCP,443:30443/TCP   44s

創建對應的后端Pod和Service

查看創建的ingress-myapp

[root@master ingress]# cat myapp-deplay.yaml
apiVersion: v1
kind: Service
metadata:
  name: myapp       # Service 名稱
  namespace: default
spec:
  selector:
    app: myapp
    release: canary
  ports:
  - name: http
    targetPort: 80      # 指定容器端口
    port: 80            # Service 自己開房的端口

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: myapp-deploy
  namespace: default
spec:
  replicas: 3
  selector:
    matchLabels:
      app: myapp
      release: canary
  template:
    metadata:
      labels:
        app: myapp
        release: canary
    spec:
      containers:
      - name: myapp
        image: ikubernetes/myapp:v2
        ports:
        - name: http
          containerPort: 80
[root@master ingress]# kubectl apply -f myapp-deplay.yaml
service/myapp created
deployment.apps/myapp-deploy unchanged

查看

[root@master ingress]# kubectl get pods
NAME                            READY   STATUS    RESTARTS   AGE
myapp-deploy-55b78d8548-b4c2c   1/1     Running   0          42h
myapp-deploy-55b78d8548-gpdw8   1/1     Running   0          42h
myapp-deploy-55b78d8548-hr6vx   1/1     Running   0          42h
[root@master ingress]# kubectl get svc
NAME         TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)   AGE
kubernetes   ClusterIP   10.96.0.1     <none>        443/TCP   22d
myapp        ClusterIP   10.111.44.7   <none>        80/TCP    6s

創建 Ingress

[root@master ingress]# cat ingress-myapp.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: ingress-myapp
  namespace: default
  annotations:
    kubernetes.io/ingress.class: "nginx"        # 自動生成 nginx 相關的匹配和修改規則
spec:
  rules:
  - host: myapp.sijiayong.com       # 使用 host 主機模式來訪問
    http:
      paths:
      - path:
        backend:
          serviceName: myapp        # 這里指定剛剛創建的后端Pod對應的Service名稱
          servicePort: 80
[root@master ingress]# kubectl apply -f ingress-myapp.yaml
ingress.extensions/ingress-myapp created
[root@master ingress]# kubectl get ing
NAME            HOSTS                 ADDRESS   PORTS   AGE
ingress-myapp   myapp.sijiayong.com             80      6s

查看 Ingress-controller 對應的Pod配置信息

上面一系列都配置完成之后，此時在看查看 Ingress-controller 的Pod中nginx的配置信息包含如下:

[root@master ingress]# kubectl exec -n ingress-nginx -it nginx-ingress-controller-7995bd9c47-b4fzh -- /bin/sh
	server {
		server_name myapp.sijiayong.com ;
		listen 80;

		set $proxy_upstream_name "-";
		set $pass_access_scheme $scheme;
		set $pass_server_port $server_port;
		set $best_http_host $http_host;
		set $pass_port $pass_server_port;
		location / {

			set $namespace      "default";
			set $ingress_name   "ingress-myapp";
			set $service_name   "myapp";
			set $service_port   "80";
			set $location_path  "/";

... ...
... ...

訪問測試

此時在集群外部訪問測試：

注意，臨時測試，上面使用的host模式來訪問，所以在測試的集群外部機器上手動添加hosts記錄

[root@xinguan-test-node1 ~]# grep myapp /etc/hosts
10.0.20.20 myapp.sijiayong.com
[root@xinguan-test-node1 ~]# curl myapp.sijiayong.com:30080
Hello MyApp | Version: v2 | <a href="hostname.html">Pod Name</a>
[root@xinguan-test-node1 ~]# curl myapp.sijiayong.com:30080/hostname.html
myapp-deploy-55b78d8548-hr6vx

模擬測試 Ingress 后端 Tomcat 訪問

還是基於上面的配置，一切都不動，增加tomcat后端Pod和Service 以及 Ingress

創建 tomcat 的 Pod 和Service

[root@master ingress]# cat tomcat-deploy.yaml
apiVersion: v1
kind: Service
metadata:
  name: tomcat
  namespace: default
spec:
  selector:
    app: tomcat
    release: canary
  ports:
  - name: http
    targetPort: 8080
    port: 8080
  - name: ajp
    targetPort: 8009
    port: 8009

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: tomcat-depoly
  namespace: default
spec:
  replicas: 3
  selector:
    matchLabels:
      app: tomcat
      release: canary
  template:
    metadata:
      labels:
        app: tomcat
        release: canary
    spec:
      containers:
      - name: tomcat
        image: tomcat:8.5.32-jre8-alpine
        ports:
        - name: http
          containerPort: 8080
        - name: ajp
          containerPort: 8009

創建和查看

[root@master ingress]# kubectl apply -f tomcat-deploy.yaml
service/tomcat created
deployment.apps/tomcat-depoly created
[root@master ingress]# kubectl get pods -o wide
NAME                             READY   STATUS    RESTARTS   AGE   IP            NODE                NOMINATED NODE   READINESS GATES
myapp-deploy-55b78d8548-b4c2c    1/1     Running   0          43h   10.244.3.29   node01.kubernetes   <none>           <none>
myapp-deploy-55b78d8548-gpdw8    1/1     Running   0          43h   10.244.1.26   node03.kubernetes   <none>           <none>
myapp-deploy-55b78d8548-hr6vx    1/1     Running   0          43h   10.244.2.22   node02.kubernetes   <none>           <none>
tomcat-depoly-579d97b849-66wrh   1/1     Running   0          7s    10.244.3.30   node01.kubernetes   <none>           <none>
tomcat-depoly-579d97b849-rh5r6   1/1     Running   0          7s    10.244.1.28   node03.kubernetes   <none>           <none>
tomcat-depoly-579d97b849-sd49w   1/1     Running   0          7s    10.244.2.23   node02.kubernetes   <none>           <none>
[root@master ingress]# kubectl get svc
NAME         TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)             AGE
kubernetes   ClusterIP   10.96.0.1      <none>        443/TCP             22d
myapp        ClusterIP   10.111.44.7    <none>        80/TCP              76m
tomcat       ClusterIP   10.106.39.78   <none>        8080/TCP,8009/TCP   3m18s

創建 tomcat-ingress

[root@master ingress]# cat ingress-tomcat.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: ingress-tomcat
  namespace: default
  annotations:
    kubernetes.io/ingress.class: "nginx"
spec:
  rules:
  - host: tomcat.sijiayong.com
    http:
      paths:
      - path:
        backend:
          serviceName: tomcat
          servicePort: 8080

創建和查看

[root@master ingress]# kubectl apply -f ingress-tomcat.yaml
ingress.extensions/ingress-tomcat created
[root@master ingress]# kubectl get ing
NAME             HOSTS                  ADDRESS   PORTS   AGE
ingress-myapp    myapp.sijiayong.com              80      53m
ingress-tomcat   tomcat.sijiayong.com             80      4s

測試訪問 tomcat

注意，同樣寫Hosts 之后進行測試

[root@xinguan-test-node1 ~]# grep tomcat /etc/hosts
10.0.20.20 myapp.sijiayong.com tomcat.sijiayong.com
[root@xinguan-test-node1 ~]# curl tomcat.sijiayong.com:30080



<!DOCTYPE html>
<html lang="en">
    <head>
        <meta charset="UTF-8" />
        <title>Apache Tomcat/8.5.32</title>
        <link href="favicon.ico" rel="icon" type="image/x-icon" />
        <link href="favicon.ico" rel="shortcut icon" type="image/x-icon" />
        <link href="tomcat.css" rel="stylesheet" type="text/css" />
    </head>

    <body>
        <div id="wrapper">
            <div id="navigation" class="curved container">
                <span id="nav-home"><a href="http://tomcat.apache.org/">Home</a></span>
                <span id="nav-hosts"><a href="/docs/">Documentation</a></span>
                <span id="nav-config"><a href="/docs/config/">Configuration</a></span>
                <span id="nav-examples"><a href="/examples/">Examples</a></span>
                <span id="nav-wiki"><a href="http://wiki.apache.org/tomcat/FrontPage">Wiki</a></span>
                <span id="nav-lists"><a href="http://tomcat.apache.org/lists.html">Mailing Lists</a></span>
                <span id="nav-help"><a href="http://tomcat.apache.org/findhelp.html">Find Help</a></span>
                <br class="separator" />
            </div>
            <div id="asf-box">
                <h1>Apache Tomcat/8.5.32</h1>
            </div>
... ...
... ...

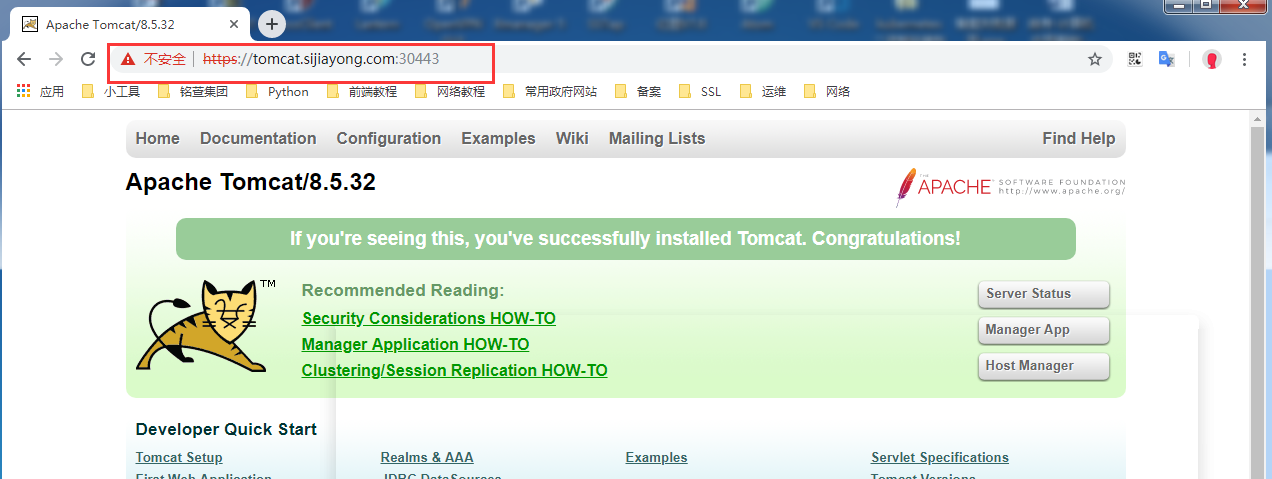

模擬測試 Https

模擬測試通過Ingress 的七層代理，訪問Https，通過Ingress卸載證書后訪問后端

所有先需要手動自簽SSL證書

自簽SSL證書

[root@master https]# openssl genrsa -out tls.key 2048
Generating RSA private key, 2048 bit long modulus
...............................+++
.....................................................................................................................................+++
e is 65537 (0x10001)
[root@master https]# openssl req -new -x509 -key tls.key -out tls.crt -subj /C=CN/ST=BeiJing/L=BeiJing/O=DefOps/CN=tomcat.sijiayong.com
[root@master https]# ll
total 8
-rw-r--r-- 1 root root 1302 Aug  1 11:33 tls.crt
-rw-r--r-- 1 root root 1675 Aug  1 11:31 tls.key

自簽證書完成

創建secret

注意，此證書不能直接帖進去，需要先創建成secret，才能應用到Ingress中

[root@master https]# kubectl create secret tls tomcat-ingress-secret --cert=tls.crt --key=tls.key
secret/tomcat-ingress-secret created
[root@master https]# kubectl get secret
NAME                    TYPE                                  DATA   AGE
default-token-bc86p     kubernetes.io/service-account-token   3      22d
tomcat-ingress-secret   kubernetes.io/tls                     2      10s
[root@master https]# kubectl describe secret tomcat-ingress-secret
Name:         tomcat-ingress-secret
Namespace:    default
Labels:       <none>
Annotations:  <none>

Type:  kubernetes.io/tls

Data
====
tls.key:  1675 bytes
tls.crt:  1302 bytes

創建tls的https清單文件

[root@master https]# cat ingress-tomcat-tls.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: ingress-tomcat-tls
  namespace: default
  annotations:
    kubernetes.io/ingress.class: "nginx"
spec:
  tls:
  - hosts:
    - tomcat.sijiayong.com
    secretName: tomcat-ingress-secret       # 這里指定剛剛創建的secret名稱
  rules:
  - host: tomcat.sijiayong.com
    http:
      paths:
      - path:
        backend:
          serviceName: tomcat
          servicePort: 8080

創建和查看

[root@master https]# kubectl apply -f ingress-tomcat-tls.yaml
ingress.extensions/ingress-tomcat-tls created
[root@master https]# kubectl get ing
NAME                 HOSTS                  ADDRESS   PORTS     AGE
ingress-myapp        myapp.sijiayong.com              80        174m
ingress-tomcat       tomcat.sijiayong.com             80        121m
ingress-tomcat-tls   tomcat.sijiayong.com             80, 443   4s          # 這里看到被創建成功
[root@master https]# kubectl describe ingres-tomcat-tls
error: the server doesn't have a resource type "ingres-tomcat-tls"
[root@master https]# kubectl describe ingress ingress-tomcat-tls
Name:             ingress-tomcat-tls
Namespace:        default
Address:
Default backend:  default-http-backend:80 (<none>)
TLS:
  tomcat-ingress-secret terminates tomcat.sijiayong.com
Rules:
  Host                  Path  Backends
  ----                  ----  --------
  tomcat.sijiayong.com
                           tomcat:8080 (10.244.1.28:8080,10.244.2.23:8080,10.244.3.30:8080)
Annotations:
  kubectl.kubernetes.io/last-applied-configuration:  {"apiVersion":"extensions/v1beta1","kind":"Ingress","metadata":{"annotations":{"kubernetes.io/ingress.class":"nginx"},"name":"ingress-tomcat-tls","namespace":"default"},"spec":{"rules":[{"host":"tomcat.sijiayong.com","http":{"paths":[{"backend":{"serviceName":"tomcat","servicePort":8080},"path":null}]}}],"tls":[{"hosts":["tomcat.sijiayong.com"],"secretName":"tomcat-ingress-secret"}]}}

  kubernetes.io/ingress.class:  nginx
Events:
  Type    Reason  Age   From                      Message
  ----    ------  ----  ----                      -------
  Normal  CREATE  26s   nginx-ingress-controller  Ingress default/ingress-tomcat-tls

測試訪問

此時就已經完成，可以測試訪問

因前面測試hosts已經寫好

tomcat https訪問測試

免責聲明！

本站轉載的文章為個人學習借鑒使用，本站對版權不負任何法律責任。如果侵犯了您的隱私權益，請聯系本站郵箱yoyou2525@163.com刪除。

猜您在找 Kubernetes Ingress-nginx使用 kubernetes安裝ingress-nginx kubernetes安裝ingress-nginx kubernetes 1.21 部署 ingress-nginx k8s ingress原理及ingress-nginx部署測試容器雲平台No.8~kubernetes負載均衡之ingress-nginx Kubernetes-10：Ingress-nginx介紹及演示 Kubernetes部署SpringCloud(三) 使用 Ingress-nginx 暴露服務使用ingress-nginx Ingress-Nginx高可用

07-kubernetes Ingress 原理 和 Ingress-nginx 案例

Service 類型

namespace 名稱空間

Ingress Controller

Ingress

Ingress-nginx 進行測試

創建對應的后端Pod和Service

創建 Ingress

查看 Ingress-controller 對應的Pod配置信息

訪問測試

模擬測試 Ingress 后端 Tomcat 訪問

創建 tomcat 的 Pod 和Service

創建 tomcat-ingress

測試訪問 tomcat

模擬測試 Https

自簽SSL證書

創建secret

創建tls的https清單文件

測試訪問

免責聲明！

07-kubernetes Ingress 原理和 Ingress-nginx 案例
