一、通過分析一個典型rpc方法調用的調用棧來說明調用過程。
1.定義一個接口
public interface DemoService { /** * class_name: sayHello * param: [param] * describe: say hello * creat_user: CoderZZ * creat_date: 2018-10-11 * creat_time: 23:06 **/ String sayHello(String param); /** * class_name: sayGoodbye * param: [param] * describe: TODO * creat_user: CoderZZ * creat_date: 2018-10-12 * creat_time: 0:27 **/ String sayGoodbye(String param); Person getPerson(String name); }
2.實現該接口
public class DemoServiceImpl implements DemoService{ public String sayHello(String param) { // 本端是否為提供端，這里會返回true boolean isProviderSide = RpcContext.getContext().isProviderSide(); System.out.println("isProviderSide:"+isProviderSide); // 獲取調用方IP地址 String clientIP = RpcContext.getContext().getRemoteHost(); System.out.println("clientIP:"+clientIP); // 獲取當前服務配置信息，所有配置信息都將轉換為URL的參數 String application = RpcContext.getContext().getUrl().getParameter("application"); System.out.println("application:"+application); String address = RpcContext.getContext().getUrl().getAddress(); System.out.println("address:"+address); String index = RpcContext.getContext().getAttachment("index"); System.out.println("getAttachment index:"+index); return "Hello "+param; } //以下省略 ............... }
3.服務端通過注冊中心發布服務，默認是dubbo協議發布(dubbo-provider.xml)
<dubbo:registry id="workpalceRegistry" address="zookeeper://192.168.33.117:2181" default="true"/> <dubbo:protocol name="dubbo" port="20880" dispatcher="all" threadpool="fixed" threads="100" accepts="10" status="test"/> <dubbo:service interface="com.zxd.dubbo.learning.api.DemoService" ref="demoServiceImpl" protocol="dubbo" registry="workpalceRegistry" executes="10" timeout="60000"/> <bean id="demoServiceImpl" class="com.zxd.dubbo.learning.provider.DemoServiceImpl"/>
4.客戶端通過注冊中心引用這個服務，注冊中心用zookeepr協議實現(dubbo-consumer2.xml)
<dubbo:registry address="zookeeper://192.168.33.117:2181"/> <!--客戶端連接控制--> <!--connections="10"--> <!--限制客戶端服務使用連接不能超過 10 個--> <dubbo:reference interface="com.zxd.dubbo.learning.api.DemoService" id="demoService" retries="2" loadbalance="random" actives="10" connections="10"/> <!--如果是線上需求需要點對點，可在 <dubbo:reference> 中配置 url 指向提供者，將繞過注冊中心，多個地址用分號隔開--> <!--<dubbo:reference id="demoService" interface="com.zxd.dubbo.learning.api.DemoService" url="dubbo://localhost:20880"/>-->
5.啟動服務端，客戶端調用Dubbo服務
public static void main(String[] args) throws IOException, ExecutionException, InterruptedException { ClassPathXmlApplicationContext classPathXmlApplicationContext = new ClassPathXmlApplicationContext("classpath:dubbo-consumer2.xml"); // classPathXmlApplicationContext.start(); System.out.println("Consumer started!"); DemoService demoService = classPathXmlApplicationContext.getBean("demoService",DemoService.class); //隱式參數 //注意：path, group, version, dubbo, token, timeout 幾個 key 是保留字段，請使用其它值 RpcContext.getContext().setAttachment("index","1"); String rt = demoService.sayHello("world"); System.out.println(rt); }
6.執行main方法獲得以下輸出
log4j:WARN No appenders could be found for logger (org.springframework.core.env.StandardEnvironment). log4j:WARN Please initialize the log4j system properly. log4j:WARN See http://logging.apache.org/log4j/1.2/faq.html#noconfig for more info. Consumer started! SLF4J: Failed to load class "org.slf4j.impl.StaticLoggerBinder". SLF4J: Defaulting to no-operation (NOP) logger implementation SLF4J: See http://www.slf4j.org/codes.html#StaticLoggerBinder for further details. Hello world Process finished with exit code 0
二、斷點跟蹤(dubbo默認底層的傳輸框架是netty)
看下 com.alibaba.dubbo.remoting.transport.netty.NettyClient 類 doOpen 方法
/*** * 打開到遠端服務機器的連接 * @throws Throwable */ @Override protected void doOpen() throws Throwable { NettyHelper.setNettyLoggerFactory(); bootstrap = new ClientBootstrap(channelFactory); // config // @see org.jboss.netty.channel.socket.SocketChannelConfig bootstrap.setOption("keepAlive", true); bootstrap.setOption("tcpNoDelay", true); bootstrap.setOption("connectTimeoutMillis", getConnectTimeout()); final NettyHandler nettyHandler = new NettyHandler(getUrl(), this); bootstrap.setPipelineFactory(new ChannelPipelineFactory() { @Override public ChannelPipeline getPipeline() { NettyCodecAdapter adapter = new NettyCodecAdapter(getCodec(), getUrl(), NettyClient.this); ChannelPipeline pipeline = Channels.pipeline(); //設置消息流的處理handler,發出去的消息先經過handler再經過encoder， //這里斷點可以設置在nettyHandler類里。 pipeline.addLast("decoder", adapter.getDecoder()); pipeline.addLast("encoder", adapter.getEncoder()); pipeline.addLast("handler", nettyHandler); return pipeline; } }); }
NettyHandler 類繼承了netty的 SimpleChannelHandler 類，並實現了 writeRequested 方法:
@Override public void writeRequested(ChannelHandlerContext ctx, MessageEvent e) throws Exception { super.writeRequested(ctx, e);//此處打斷點 NettyChannel channel = NettyChannel.getOrAddChannel(ctx.getChannel(), url, handler); try { handler.sent(channel, e.getMessage()); } finally { NettyChannel.removeChannelIfDisconnected(ctx.getChannel()); } }

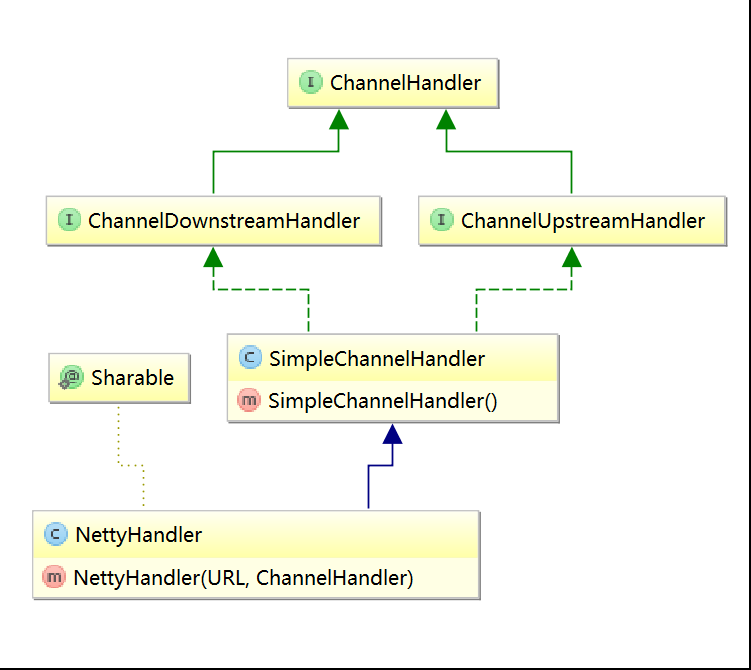

NettyHandler類的繼承關系圖：
在 super.writeRequested(ctx, e); 處打斷點,然后運行main方法,在程序斷點處得到以下線程堆棧信息:
"main@1" prio=5 tid=0x1 nid=NA runnable java.lang.Thread.State: RUNNABLE at com.alibaba.dubbo.remoting.transport.netty.NettyHandler.writeRequested(NettyHandler.java:98) at org.jboss.netty.channel.SimpleChannelHandler.handleDownstream(SimpleChannelHandler.java:266) at org.jboss.netty.channel.DefaultChannelPipeline.sendDownstream(DefaultChannelPipeline.java:591) at org.jboss.netty.channel.DefaultChannelPipeline.sendDownstream(DefaultChannelPipeline.java:582) at org.jboss.netty.channel.Channels.write(Channels.java:611) at org.jboss.netty.channel.Channels.write(Channels.java:578) at org.jboss.netty.channel.AbstractChannel.write(AbstractChannel.java:251) at com.alibaba.dubbo.remoting.transport.netty.NettyChannel.send(NettyChannel.java:100) at com.alibaba.dubbo.remoting.transport.AbstractClient.send(AbstractClient.java:265) at com.alibaba.dubbo.remoting.transport.AbstractPeer.send(AbstractPeer.java:53) at com.alibaba.dubbo.remoting.exchange.support.header.HeaderExchangeChannel.request(HeaderExchangeChannel.java:116) at com.alibaba.dubbo.remoting.exchange.support.header.HeaderExchangeClient.request(HeaderExchangeClient.java:90) at com.alibaba.dubbo.rpc.protocol.dubbo.DubboInvoker.doInvoke(DubboInvoker.java:95) at com.alibaba.dubbo.rpc.protocol.AbstractInvoker.invoke(AbstractInvoker.java:155) at com.alibaba.dubbo.rpc.listener.ListenerInvokerWrapper.invoke(ListenerInvokerWrapper.java:77) at com.alibaba.dubbo.monitor.support.MonitorFilter.invoke(MonitorFilter.java:75) at com.alibaba.dubbo.rpc.protocol.ProtocolFilterWrapper$1.invoke(ProtocolFilterWrapper.java:72) at com.alibaba.dubbo.rpc.protocol.dubbo.filter.FutureFilter.invoke(FutureFilter.java:54) at com.alibaba.dubbo.rpc.protocol.ProtocolFilterWrapper$1.invoke(ProtocolFilterWrapper.java:72) at com.alibaba.dubbo.rpc.filter.ActiveLimitFilter.invoke(ActiveLimitFilter.java:70) at com.alibaba.dubbo.rpc.protocol.ProtocolFilterWrapper$1.invoke(ProtocolFilterWrapper.java:72) at com.alibaba.dubbo.rpc.filter.ConsumerContextFilter.invoke(ConsumerContextFilter.java:49) at com.alibaba.dubbo.rpc.protocol.ProtocolFilterWrapper$1.invoke(ProtocolFilterWrapper.java:72) at com.alibaba.dubbo.rpc.protocol.InvokerWrapper.invoke(InvokerWrapper.java:56) at com.alibaba.dubbo.rpc.cluster.support.FailoverClusterInvoker.doInvoke(FailoverClusterInvoker.java:78) at com.alibaba.dubbo.rpc.cluster.support.AbstractClusterInvoker.invoke(AbstractClusterInvoker.java:244) at com.alibaba.dubbo.rpc.cluster.support.wrapper.MockClusterInvoker.invoke(MockClusterInvoker.java:75) at com.alibaba.dubbo.rpc.proxy.InvokerInvocationHandler.invoke(InvokerInvocationHandler.java:52) at com.alibaba.dubbo.common.bytecode.proxy0.sayHello(proxy0.java:-1) at com.zxd.dubbo.learning.consumer.Consumer2.main(Consumer2.java:37)
從下向上看，可以看到客戶端方法調用經過的類和方法。
第二行棧信息:
at com.alibaba.dubbo.common.bytecode.proxy0.sayHello(proxy0.java:-1)
com.alibaba.dubbo.common.bytecode.proxy0 類是一個代理類，代理了所有RPC服務接口的方法調用。
這個類實例什么時候創建，類代碼是什么樣的?參見博文dubbo基於spring的構建分析。
大體過程為:
//Dubbo xml scheme解析處理類 public class DubboNamespaceHandler extends NamespaceHandlerSupport { static { Version.checkDuplicate(DubboNamespaceHandler.class); } @Override public void init() { registerBeanDefinitionParser("application", new DubboBeanDefinitionParser(ApplicationConfig.class, true)); registerBeanDefinitionParser("module", new DubboBeanDefinitionParser(ModuleConfig.class, true)); registerBeanDefinitionParser("registry", new DubboBeanDefinitionParser(RegistryConfig.class, true)); registerBeanDefinitionParser("monitor", new DubboBeanDefinitionParser(MonitorConfig.class, true)); registerBeanDefinitionParser("provider", new DubboBeanDefinitionParser(ProviderConfig.class, true)); registerBeanDefinitionParser("consumer", new DubboBeanDefinitionParser(ConsumerConfig.class, true)); registerBeanDefinitionParser("protocol", new DubboBeanDefinitionParser(ProtocolConfig.class, true)); registerBeanDefinitionParser("service", new DubboBeanDefinitionParser(ServiceBean.class, true)); registerBeanDefinitionParser("reference", new DubboBeanDefinitionParser(ReferenceBean.class, false));//處理<dubbo:reference>標簽 registerBeanDefinitionParser("annotation", new AnnotationBeanDefinitionParser()); } }

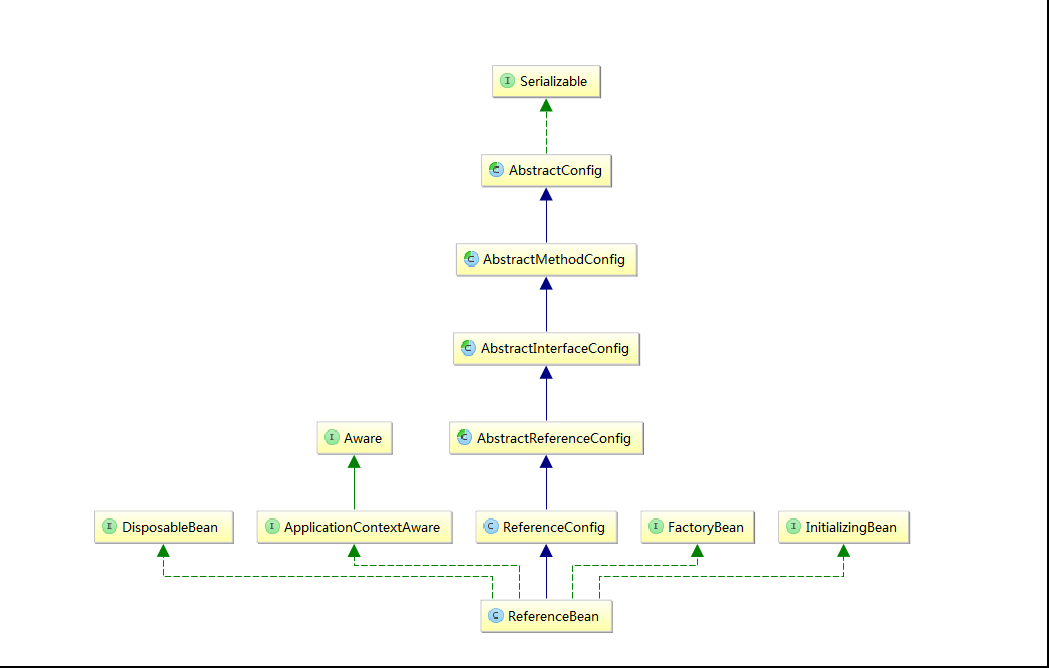

以下為 ReferenceBean 的類繼承關系圖:
代理的創建是由 ReferenceBean 類里的 getObject() 方法里觸發：
@Override public Object getObject() throws Exception { return get(); }
get() 方法在 ReferenceConfig 類中：
public synchronized T get() { if (destroyed) { throw new IllegalStateException("Already destroyed!"); } if (ref == null) { init(); } return ref; } private void init() { ............. ref = createProxy(map); ............. } /*** * 創建客戶端rpc調用代理 * @param map * @return */ @SuppressWarnings({"unchecked", "rawtypes", "deprecation"}) private T createProxy(Map<String, String> map) { //....用於生成invoker的邏輯 //創建服務代理 // create service proxy return (T) proxyFactory.getProxy(invoker); }
proxyFactory 的聲明為：
private static final ProxyFactory proxyFactory = ExtensionLoader.getExtensionLoader(ProxyFactory.class).getAdaptiveExtension();
由博文dubbo spi機制源碼學習可以得到 ProxyFactory 接口的 Adaptive 類的 getProxy 方法源碼如下:
public class ProxyFactory$Adpative implements com.alibaba.dubbo.rpc.ProxyFactory { public java.lang.Object getProxy(com.alibaba.dubbo.rpc.Invoker arg0) throws com.alibaba.dubbo.rpc.RpcException { if (arg0 == null) throw new IllegalArgumentException("com.alibaba.dubbo.rpc.Invoker argument == null"); if (arg0.getUrl() == null) throw new IllegalArgumentException("com.alibaba.dubbo.rpc.Invoker argument getUrl() == null"); com.alibaba.dubbo.common.URL url = arg0.getUrl(); String extName = url.getParameter("proxy", "javassist"); if (extName == null) throw new IllegalStateException("Fail to get extension(com.alibaba.dubbo.rpc.ProxyFactory) name from url(" + url.toString() + ") use keys([proxy])"); //這里默認用了ProxyFactory javassist擴展的getProxy方法創建代理 com.alibaba.dubbo.rpc.ProxyFactory extension = (com.alibaba.dubbo.rpc.ProxyFactory) ExtensionLoader.getExtensionLoader(com.alibaba.dubbo.rpc.ProxyFactory.class).getExtension(extName); return extension.getProxy(arg0); } }

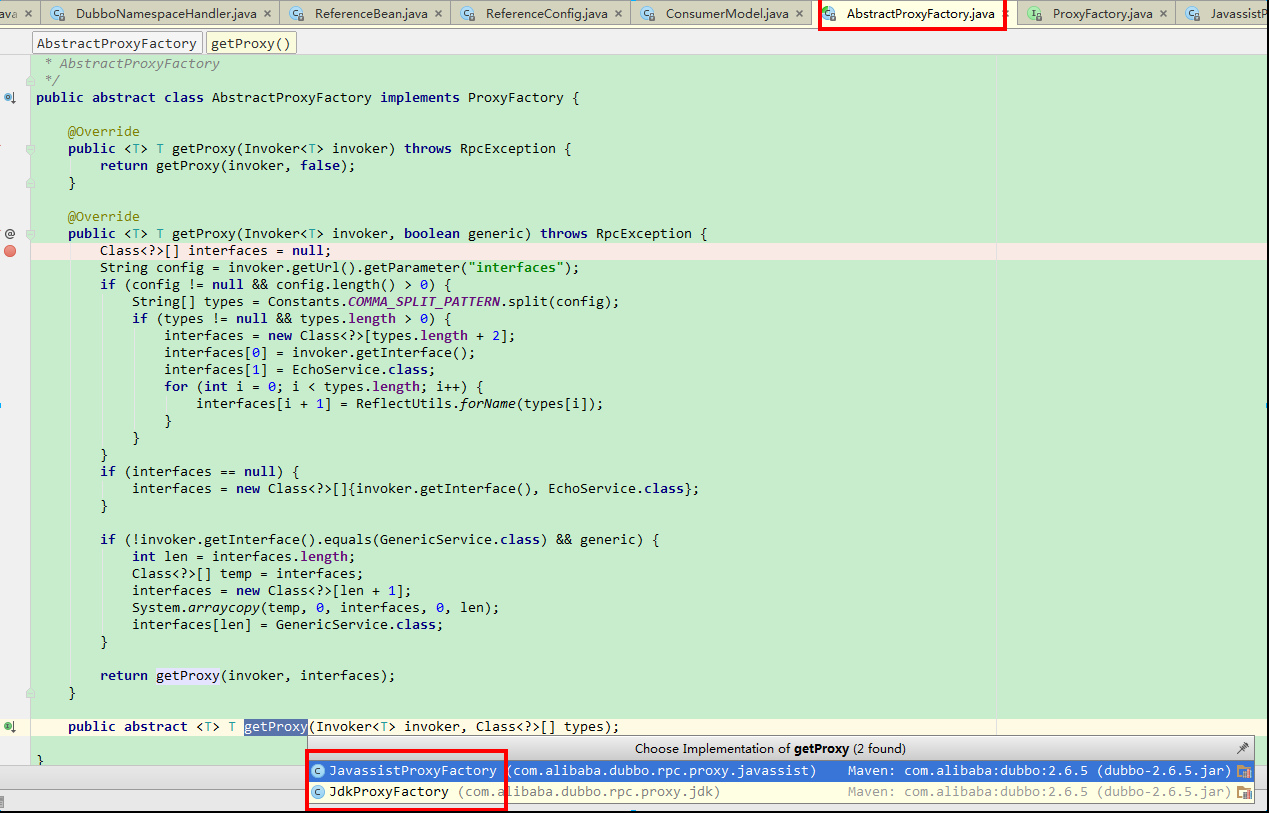

ProxyFactory 為接口類,實現類有抽象類 AbstractProxyFactory 和類 StubProxyFactoryWrapper 。 AbstractProxyFactory 包含抽象方法 public abstract <T> T getProxy(Invoker<T> invoker, Class<?>[] types); ,該抽象方法實現類有 JavassistProxyFactory 和 JdkProxyFactory ，如下:
ProxyFactory 接口的javassist擴展類 JavassistProxyFactory 的 getProxy 方法實現如下:
/** * JavaassistRpcProxyFactory */ public class JavassistProxyFactory extends AbstractProxyFactory { @Override @SuppressWarnings("unchecked") public <T> T getProxy(Invoker<T> invoker, Class<?>[] interfaces) { //代理類實現化以new InvokerInvocationHandler(invoker)為參數 return (T) Proxy.getProxy(interfaces).newInstance(new InvokerInvocationHandler(invoker)); } }
生成動態代理的 Proxy 類
/** * Get proxy. * * @param ics interface class array. * @return Proxy instance. */ public static Proxy getProxy(Class<?>... ics) { return getProxy(ClassHelper.getClassLoader(Proxy.class), ics); } /** * Get proxy. * * @param cl class loader. * @param ics interface class array.可以實現多個接口 * @return Proxy instance. */ public static Proxy getProxy(ClassLoader cl, Class<?>... ics) { if (ics.length > 65535) throw new IllegalArgumentException("interface limit exceeded"); StringBuilder sb = new StringBuilder(); for (int i = 0; i < ics.length; i++) { String itf = ics[i].getName(); if (!ics[i].isInterface()) throw new RuntimeException(itf + " is not a interface."); Class<?> tmp = null; try { tmp = Class.forName(itf, false, cl); } catch (ClassNotFoundException e) { } if (tmp != ics[i]) throw new IllegalArgumentException(ics[i] + " is not visible from class loader"); sb.append(itf).append(';'); } // use interface class name list as key. // 用接口類名做key,多個接口以";"分開。 String key = sb.toString(); // get cache by class loader. // 緩存 Map<String, Object> cache; synchronized (ProxyCacheMap) { cache = ProxyCacheMap.get(cl); if (cache == null) { cache = new HashMap<String, Object>(); ProxyCacheMap.put(cl, cache); } } Proxy proxy = null; synchronized (cache) { do { Object value = cache.get(key); if (value instanceof Reference<?>) { //如果有存在引用對象，返回緩存對象。 proxy = (Proxy) ((Reference<?>) value).get(); if (proxy != null) return proxy; } //對象正在生成，線程掛起，等待 if (value == PendingGenerationMarker) { try { cache.wait(); } catch (InterruptedException e) { } } else { //放入正在生成標識 cache.put(key, PendingGenerationMarker); break; } } while (true); } //類名稱后自動加序列號 0,1,2,3... long id = PROXY_CLASS_COUNTER.getAndIncrement(); String pkg = null; //ClassGenerator dubbo用javassist實現的工具類 ClassGenerator ccp = null, ccm = null; try { ccp = ClassGenerator.newInstance(cl); Set<String> worked = new HashSet<String>(); List<Method> methods = new ArrayList<Method>(); for (int i = 0; i < ics.length; i++) { //檢查包名稱及不同包的修飾符 if (!Modifier.isPublic(ics[i].getModifiers())) { String npkg = ics[i].getPackage().getName(); if (pkg == null) { pkg = npkg; } else { if (!pkg.equals(npkg)) throw new IllegalArgumentException("non-public interfaces from different packages"); } } //代理類添加要實現的接口Class對象 ccp.addInterface(ics[i]); for (Method method : ics[i].getMethods()) { //獲取方法描述符，不同接口，同樣的方法，只能被實現一次。 String desc = ReflectUtils.getDesc(method); if (worked.contains(desc)) continue; worked.add(desc); int ix = methods.size(); //方法返回類型 Class<?> rt = method.getReturnType(); //方法參數類型列表 Class<?>[] pts = method.getParameterTypes(); //生成接口的實現代碼，每個方法都一樣 StringBuilder code = new StringBuilder("Object[] args = new Object[").append(pts.length).append("];"); for (int j = 0; j < pts.length; j++) code.append(" args[").append(j).append("] = ($w)$").append(j + 1).append(";"); code.append(" Object ret = handler.invoke(this, methods[" + ix + "], args);"); if (!Void.TYPE.equals(rt)) code.append(" return ").append(asArgument(rt, "ret")).append(";"); methods.add(method); ccp.addMethod(method.getName(), method.getModifiers(), rt, pts, method.getExceptionTypes(), code.toString()); } } if (pkg == null) pkg = PACKAGE_NAME; // create ProxyInstance class. // 具體代理類名稱，這里是類全名 String pcn = pkg + ".proxy" + id; ccp.setClassName(pcn); ccp.addField("public static java.lang.reflect.Method[] methods;"); ccp.addField("private " + InvocationHandler.class.getName() + " handler;"); //創建構造函數 ccp.addConstructor(Modifier.PUBLIC, new Class<?>[]{InvocationHandler.class}, new Class<?>[0], "handler=$1;"); ccp.addDefaultConstructor(); Class<?> clazz = ccp.toClass(); //通過反射，把method數組放入，靜態變量methods中， clazz.getField("methods").set(null, methods.toArray(new Method[0])); // create Proxy class. String fcn = Proxy.class.getName() + id; ccm = ClassGenerator.newInstance(cl); ccm.setClassName(fcn); ccm.addDefaultConstructor(); //設置父類為Proxy類 ccm.setSuperClass(Proxy.class); //生成實現它的抽象方法newInstance代碼,new 的實例對象，是上面生成的代理類 pcn ccm.addMethod("public Object newInstance(" + InvocationHandler.class.getName() + " h){ return new " + pcn + "($1); }"); Class<?> pc = ccm.toClass(); proxy = (Proxy) pc.newInstance(); } catch (RuntimeException e) { throw e; } catch (Exception e) { throw new RuntimeException(e.getMessage(), e); } finally { // release ClassGenerator if (ccp != null) ccp.release(); if (ccm != null) ccm.release(); synchronized (cache) { if (proxy == null) cache.remove(key); else //放入緩存，key:實現的接口名，value 代理對象，這個用弱引用， //當jvm gc時，會打斷對實例對象的引用，對象接下來就等待被回收。 cache.put(key, new WeakReference<Proxy>(proxy)); cache.notifyAll(); } } return proxy; }
通過 javaagent 可以導出動態代理class文件源碼,以下為生成的代理類源碼，動態生成了兩個類:
package com.alibaba.dubbo.common.bytecode; import java.lang.reflect.InvocationHandler; public class Proxy0 extends Proxy implements ClassGenerator.DC { public Object newInstance(InvocationHandler paramInvocationHandler) { return new proxy0(paramInvocationHandler); } }
這個類繼承了抽象類 Proxy ，實現了它的抽象方法 newInstance ，接口 ClassGenerator.DC 是dubbo內部作為動態類標識的接口。
還有一個類 proxy0 ，就是在開始方法棧里看到的代理類，源碼如下:
package com.alibaba.dubbo.common.bytecode; import com.alibaba.dubbo.rpc.service.EchoService; import com.zxd.dubbo.learning.api.DemoService; import com.zxd.dubbo.learning.api.Person; import java.lang.reflect.InvocationHandler; import java.lang.reflect.Method; public class proxy0 implements ClassGenerator.DC, EchoService, DemoService { public static Method[] methods; private InvocationHandler handler; //實現了接口方法 public String sayHello(String paramString) { Object[] arrayOfObject = new Object[1]; arrayOfObject[0] = paramString; Object localObject = this.handler.invoke(this, methods[0], arrayOfObject);//實際調用邏輯 return (String)localObject; } //實現了接口方法 public String sayGoodbye(String paramString) { Object[] arrayOfObject = new Object[1]; arrayOfObject[0] = paramString; Object localObject = this.handler.invoke(this, methods[1], arrayOfObject); return (String)localObject; } //實現了接口方法 public Person getPerson(String paramString) { Object[] arrayOfObject = new Object[1]; arrayOfObject[0] = paramString; Object localObject = this.handler.invoke(this, methods[2], arrayOfObject); return (Person)localObject; } //回顯測試接口 public Object $echo(Object paramObject) { Object[] arrayOfObject = new Object[1]; arrayOfObject[0] = paramObject; Object localObject = this.handler.invoke(this, methods[3], arrayOfObject); return (Object)localObject; } public proxy0() { } public proxy0(InvocationHandler paramInvocationHandler) { //public構造函數，這里handler是 //由Proxy.getProxy(interfaces).newInstance(new InvokerInvocationHandler(invoker))語句傳入的InvokerInvocationHandler對象 this.handler = paramInvocationHandler; } }
可以看到代理類實現了3個接口。
ClassGeneratr.DC 是dubbo動態類標識接口;
DemoService 是實際業務接口。這樣代理就可以調用服務方法了;
EchoService 是回顯測試接口，它能為所有dubbo rpc服務加上的一個回顯測試方法,只有一個方法:
package com.alibaba.dubbo.rpc.service; /** * Echo service. * @export */ public interface EchoService { /** * echo test. * * @param message message. * @return message. */ Object $echo(Object message); }
EchoService echoService = (EchoService) demoService; // 通過強制轉型為EchoService,可以測試。
通過查看 proxy0.class 的 sayHello 方法,其實際調用的是O bject localObject = this.handler.invoke(this, methods[0], arrayOfObject);
與上述堆棧信息第三行一致:
at com.alibaba.dubbo.rpc.proxy.InvokerInvocationHandler.invoke(InvokerInvocationHandler.java:52)
InvokerInvocationHandler 如下:
public class InvokerInvocationHandler implements InvocationHandler { private final Invoker<?> invoker; //通過構造函數傳入invoker public InvokerInvocationHandler(Invoker<?> handler) { this.invoker = handler; } @Override public Object invoke(Object proxy, Method method, Object[] args) throws Throwable { String methodName = method.getName(); Class<?>[] parameterTypes = method.getParameterTypes(); //如果是Object類方法 if (method.getDeclaringClass() == Object.class) { //反射調用 return method.invoke(invoker, args); } //對3個特殊方法的調用，做了處理 if ("toString".equals(methodName) && parameterTypes.length == 0) { return invoker.toString(); } if ("hashCode".equals(methodName) && parameterTypes.length == 0) { return invoker.hashCode(); } if ("equals".equals(methodName) && parameterTypes.length == 1) { return invoker.equals(args[0]); } //其他業務方法通過invoker.invoke方法調用 return invoker.invoke(new RpcInvocation(method, args)).recreate(); } }
這里的 invoker 對象，通過 InvokerInvocationHandler 構造方法傳入，而 InvokerInvocationHandler 對象是由 JavassistProxyFactory 類 getProxy(Invoker<T> invoker, Class<?>[] interfaces) 方法創建。
回到調用 proxyFactory.getProxy(invoker); 方法的地方，即 ReferenceConfig 類的 createProxy(Map<String, String> map) 方法：
@SuppressWarnings({"unchecked", "rawtypes", "deprecation"})
private T createProxy(Map<String, String> map) {
URL tmpUrl = new URL("temp", "localhost", 0, map);
final boolean isJvmRefer;
if (isInjvm() == null) {
if (url != null && url.length() > 0) { // if a url is specified, don't do local reference
isJvmRefer = false;
} else if (InjvmProtocol.getInjvmProtocol().isInjvmRefer(tmpUrl)) {
// by default, reference local service if there is
isJvmRefer = true;
} else {
isJvmRefer = false;
}
} else {
isJvmRefer = isInjvm().booleanValue();
}
if (isJvmRefer) {
URL url = new URL(Constants.LOCAL_PROTOCOL, NetUtils.LOCALHOST, 0, interfaceClass.getName()).addParameters(map);
invoker = refprotocol.refer(interfaceClass, url);
if (logger.isInfoEnabled()) {
logger.info("Using injvm service " + interfaceClass.getName());
}
} else {
if (url != null && url.length() > 0) { // user specified URL, could be peer-to-peer address, or register center's address.
String[] us = Constants.SEMICOLON_SPLIT_PATTERN.split(url);
if (us != null && us.length > 0) {
for (String u : us) {
URL url = URL.valueOf(u);
if (url.getPath() == null || url.getPath().length() == 0) {
url = url.setPath(interfaceName);
}
if (Constants.REGISTRY_PROTOCOL.equals(url.getProtocol())) {
urls.add(url.addParameterAndEncoded(Constants.REFER_KEY, StringUtils.toQueryString(map)));
} else {
urls.add(ClusterUtils.mergeUrl(url, map));
}
}
}
} else { // assemble URL from register center's configuration
List<URL> us = loadRegistries(false);
if (us != null && !us.isEmpty()) {
for (URL u : us) {
URL monitorUrl = loadMonitor(u);
if (monitorUrl != null) {
map.put(Constants.MONITOR_KEY, URL.encode(monitorUrl.toFullString()));
}
urls.add(u.addParameterAndEncoded(Constants.REFER_KEY, StringUtils.toQueryString(map)));
}
}
if (urls.isEmpty()) {
throw new IllegalStateException("No such any registry to reference " + interfaceName + " on the consumer " + NetUtils.getLocalHost() + " use dubbo version " + Version.getVersion() + ", please config <dubbo:registry address=\"...\" /> to your spring config.");
}
}
//只有一個直連地址或一個注冊中心配置地址
if (urls.size() == 1) {
//這里的urls.get(0)協議，可能是直連地址(默認dubbo協議）,也可能是regiter注冊地址（zookeeper協議）
//本例通過配置一個注冊中心的形式
invoker = refprotocol.refer(interfaceClass, urls.get(0));
} else {
//多個直連地址或者多個注冊中心地址,甚至是兩者的組合。
List<Invoker<?>> invokers = new ArrayList<Invoker<?>>();
URL registryURL = null;
for (URL url : urls) {
//創建invoker放入invokers
invokers.add(refprotocol.refer(interfaceClass, url));
if (Constants.REGISTRY_PROTOCOL.equals(url.getProtocol())) {
// 多個注冊中心，用最后一個registry url
registryURL = url; // use last registry url
}
}
//有注冊中心協議的URL，
//對多個url,其中存在有注冊中心的，寫死用AvailableCluster集群策略
//這其中包括直連和注冊中心混合或者都是注冊中心兩種情況
if (registryURL != null) { // registry url is available
// use AvailableCluster only when register's cluster is available
URL u = registryURL.addParameter(Constants.CLUSTER_KEY, AvailableCluster.NAME);
invoker = cluster.join(new StaticDirectory(u, invokers));
} else { // not a registry url (多個直連的url)
invoker = cluster.join(new StaticDirectory(invokers));
}
}
}
Boolean c = check;
if (c == null && consumer != null) {
c = consumer.isCheck();
}
if (c == null) {
c = true; // default true
}
if (c && !invoker.isAvailable()) {
throw new IllegalStateException("Failed to check the status of the service " + interfaceName + ". No provider available for the service " + (group == null ? "" : group + "/") + interfaceName + (version == null ? "" : ":" + version) + " from the url " + invoker.getUrl() + " to the consumer " + NetUtils.getLocalHost() + " use dubbo version " + Version.getVersion());
}
if (logger.isInfoEnabled()) {
logger.info("Refer dubbo service " + interfaceClass.getName() + " from url " + invoker.getUrl());
}
// create service proxy
return (T) proxyFactory.getProxy(invoker);
}
可以看到 invoker 是通過 refprotocol.refer(interfaceClass, urls.get(0)); 或者 cluster.join(new StaticDirectory(u, invokers)); 、 cluster.join(new StaticDirectory(invokers)); 三種構建語句依照條件選一種調用生成。
這里分析第一種生成 invokder 的情況，根據spi機制這里 refprotocol 對象是 Protocol$Adpative 實例，具體refer實現是:
public com.alibaba.dubbo.rpc.Invoker refer(java.lang.Class arg0, com.alibaba.dubbo.common.URL arg1) throws com.alibaba.dubbo.rpc.RpcException { if (arg1 == null) throw new IllegalArgumentException("url == null"); com.alibaba.dubbo.common.URL url = arg1; String extName = (url.getProtocol() == null ? "dubbo" : url.getProtocol()); if (extName == null) throw new IllegalStateException("Fail to get extension(com.alibaba.dubbo.rpc.Protocol) name from url(" + url.toString() + ") use keys([protocol])"); com.alibaba.dubbo.rpc.Protocol extension = (com.alibaba.dubbo.rpc.Protocol) ExtensionLoader.getExtensionLoader(com.alibaba.dubbo.rpc.Protocol.class).getExtension(extName); return extension.refer(arg0, arg1); }
通過代碼可以得知，Protocol具體實現要根據url的Protocol值再通過spi得到.如果是直連地址，這里就是dubbo協議，最后走 DubboProtocol 類的refer方法.
具體實現是：
@Override public <T> Invoker<T> refer(Class<T> serviceType, URL url) throws RpcException { optimizeSerialization(url); // create rpc invoker. DubboInvoker<T> invoker = new DubboInvoker<T>(serviceType, url, getClients(url), invokers); invokers.add(invoker); return invoker; }
如果是注冊中心，這里protocol是 register ，會走 RegistryProtocol 類的 refer 方法:
@Override @SuppressWarnings("unchecked") public <T> Invoker<T> refer(Class<T> type, URL url) throws RpcException { //通過register 可以獲取具體注冊中心協議，這里是zookeeper,並設置為url的協議值。 url = url.setProtocol(url.getParameter(Constants.REGISTRY_KEY, Constants.DEFAULT_REGISTRY)).removeParameter(Constants.REGISTRY_KEY); //獲取zookeeper Registry 實現，即ZookeeperRegistryFactory ，並調用getRegistry方法實現 //獲取zookeeper類型的registry對象 Registry registry = registryFactory.getRegistry(url); if (RegistryService.class.equals(type)) { return proxyFactory.getInvoker((T) registry, type, url); } // group="a,b" or group="*" Map<String, String> qs = StringUtils.parseQueryString(url.getParameterAndDecoded(Constants.REFER_KEY)); String group = qs.get(Constants.GROUP_KEY); if (group != null && group.length() > 0) { if ((Constants.COMMA_SPLIT_PATTERN.split(group)).length > 1 || "*".equals(group)) { return doRefer(getMergeableCluster(), registry, type, url); } } //這里cluster是Cluster$Adpative類對象 return doRefer(cluster, registry, type, url); } private <T> Invoker<T> doRefer(Cluster cluster, Registry registry, Class<T> type, URL url) { //這里的RegistryDirectory和StaticDirectory向對應的，前者是動態從注冊中心獲取url目錄對象，后者是靜態指定url目錄。 RegistryDirectory<T> directory = new RegistryDirectory<T>(type, url); directory.setRegistry(registry); directory.setProtocol(protocol); // all attributes of REFER_KEY Map<String, String> parameters = new HashMap<String, String>(directory.getUrl().getParameters()); URL subscribeUrl = new URL(Constants.CONSUMER_PROTOCOL, parameters.remove(Constants.REGISTER_IP_KEY), 0, type.getName(), parameters); if (!Constants.ANY_VALUE.equals(url.getServiceInterface()) && url.getParameter(Constants.REGISTER_KEY, true)) { registry.register(subscribeUrl.addParameters(Constants.CATEGORY_KEY, Constants.CONSUMERS_CATEGORY, Constants.CHECK_KEY, String.valueOf(false))); } //訂閱注冊中心，可以獲取服務提供方地址等信息 directory.subscribe(subscribeUrl.addParameter(Constants.CATEGORY_KEY, Constants.PROVIDERS_CATEGORY + "," + Constants.CONFIGURATORS_CATEGORY + "," + Constants.ROUTERS_CATEGORY)); //通過調用Cluster$Adpative類的join方法返回Invoker對象(***看這里***) Invoker invoker = cluster.join(directory); ProviderConsumerRegTable.registerConsumer(invoker, url, subscribeUrl, directory); return invoker; }
這里看下 Cluster$Adpative 類 join 方法實現:
public com.alibaba.dubbo.rpc.Invoker join(com.alibaba.dubbo.rpc.cluster.Directory arg0) throws com.alibaba.dubbo.rpc.RpcException { if (arg0 == null) throw new IllegalArgumentException("com.alibaba.dubbo.rpc.cluster.Directory argument == null"); if (arg0.getUrl() == null) throw new IllegalArgumentException("com.alibaba.dubbo.rpc.cluster.Directory argument getUrl() == null"); com.alibaba.dubbo.common.URL url = arg0.getUrl(); //通過cluster獲取集群策略，默認是failover //本例是使用failover機制 String extName = url.getParameter("cluster", "failover"); if(extName == null) throw new IllegalStateException("Fail to get extension(com.alibaba.dubbo.rpc.cluster.Cluster) name from url(" + url.toString() + ") use keys([cluster])"); com.alibaba.dubbo.rpc.cluster.Cluster extension = (com.alibaba.dubbo.rpc.cluster.Cluster)ExtensionLoader.getExtensionLoader(com.alibaba.dubbo.rpc.cluster.Cluster.class).getExtension(extName); //通過spi這里得到FailoverCluster對象 return extension.join(arg0); }
再看下 FailoverCluster 的 join 方法：
public class FailoverCluster implements Cluster { public final static String NAME = "failover"; @Override public <T> Invoker<T> join(Directory<T> directory) throws RpcException { //返回FailoverClusterInvoker對象 return new FailoverClusterInvoker<T>(directory); } }
由於Cluster spi實現中有個 MockClusterWrapper 是包裝類，這里牽涉到是dubbo的aop機制，這里先調用它的join方法:
public class MockClusterWrapper implements Cluster { private Cluster cluster; public MockClusterWrapper(Cluster cluster) { this.cluster = cluster; } @Override public <T> Invoker<T> join(Directory<T> directory) throws RpcException { return new MockClusterInvoker<T>(directory, this.cluster.join(directory)); } }
又由於 FailoverClusterInvoker 是 AbstractClusterInvoker 的子類，它的 invoke 方法實現在其父類中的，所以如下方法棧信息：
at com.alibaba.dubbo.rpc.cluster.support.FailoverClusterInvoker.doInvoke(FailoverClusterInvoker.java:78) at com.alibaba.dubbo.rpc.cluster.support.AbstractClusterInvoker.invoke(AbstractClusterInvoker.java:244) at com.alibaba.dubbo.rpc.cluster.support.wrapper.MockClusterInvoker.invoke(MockClusterInvoker.java:75)
這些類都是dubbo的集群容錯.博文dubbo集群容錯機制代碼分析是關於集群容錯的介紹.
再往下看 AbstractClusterInvoker 的 invoke 方法實現：
@Override public Result invoke(final Invocation invocation) throws RpcException { checkWhetherDestroyed(); LoadBalance loadbalance = null; // binding attachments into invocation. Map<String, String> contextAttachments = RpcContext.getContext().getAttachments(); if (contextAttachments != null && contextAttachments.size() != 0) { ((RpcInvocation) invocation).addAttachments(contextAttachments); } //會調用directory的list方法 返回要調用invokers集合。 //其實是AbstractDirectory的list方法，這個方法里就是利用路由規則（如果有），從所有 //提供者中，選出符合規則的提供者 //接下里才是，集群容錯和負載均衡。 List<Invoker<T>> invokers = list(invocation); if (invokers != null && !invokers.isEmpty()) { loadbalance = ExtensionLoader.getExtensionLoader(LoadBalance.class).getExtension(invokers.get(0).getUrl() .getMethodParameter(RpcUtils.getMethodName(invocation), Constants.LOADBALANCE_KEY, Constants.DEFAULT_LOADBALANCE)); } RpcUtils.attachInvocationIdIfAsync(getUrl(), invocation); return doInvoke(invocation, invokers, loadbalance); } protected void checkWhetherDestroyed() { if (destroyed.get()) { throw new RpcException("Rpc cluster invoker for " + getInterface() + " on consumer " + NetUtils.getLocalHost() + " use dubbo version " + Version.getVersion() + " is now destroyed! Can not invoke any more."); } }
list方法：
protected List<Invoker<T>> list(Invocation invocation) throws RpcException { List<Invoker<T>> invokers = directory.list(invocation); return invokers; }
跟到 RegistryDirectory 類的 list 方法，實現在其父類 AbstractDirectory 中:
@Override public List<Invoker<T>> list(Invocation invocation) throws RpcException { if (destroyed) { throw new RpcException("Directory already destroyed .url: " + getUrl()); } //獲取所有的提供者 //這里doList是個抽象方法，由RegistryDirectory實現具體： List<Invoker<T>> invokers = doList(invocation); List<Router> localRouters = this.routers; // local reference if (localRouters != null && !localRouters.isEmpty()) { for (Router router : localRouters) { try { if (router.getUrl() == null || router.getUrl().getParameter(Constants.RUNTIME_KEY, false)) { //Router接口，實現類的rout的方法。路由獲取服務提供者 invokers = router.route(invokers, getConsumerUrl(), invocation); } } catch (Throwable t) { logger.error("Failed to execute router: " + getUrl() + ", cause: " + t.getMessage(), t); } } } return invokers; }
RegistryDirectory 實現具體的 doList 方法：
@Override public List<Invoker<T>> doList(Invocation invocation) { if (forbidden) { // 1. 沒有服務提供者 2. 服務提供者被禁用 // 1. No service provider 2. Service providers are disabled throw new RpcException(RpcException.FORBIDDEN_EXCEPTION, "No provider available from registry " + getUrl().getAddress() + " for service " + getConsumerUrl().getServiceKey() + " on consumer " + NetUtils.getLocalHost() + " use dubbo version " + Version.getVersion() + ", please check status of providers(disabled, not registered or in blacklist)."); } List<Invoker<T>> invokers = null; //methodInvokerMap在refreshInvoker方法里賦值 Map<String, List<Invoker<T>>> localMethodInvokerMap = this.methodInvokerMap; // local reference if (localMethodInvokerMap != null && localMethodInvokerMap.size() > 0) { String methodName = RpcUtils.getMethodName(invocation); Object[] args = RpcUtils.getArguments(invocation); if (args != null && args.length > 0 && args[0] != null && (args[0] instanceof String || args[0].getClass().isEnum())) { invokers = localMethodInvokerMap.get(methodName + "." + args[0]); // The routing can be enumerated according to the first parameter(可根據第一個參數枚舉路由) } if (invokers == null) { invokers = localMethodInvokerMap.get(methodName); } if (invokers == null) { invokers = localMethodInvokerMap.get(Constants.ANY_VALUE); } if (invokers == null) { Iterator<List<Invoker<T>>> iterator = localMethodInvokerMap.values().iterator(); if (iterator.hasNext()) { invokers = iterator.next(); } } } return invokers == null ? new ArrayList<Invoker<T>>(0) : invokers; }
下面是 refreshInvoker(List<URL> invokerUrls) 方法:
private void refreshInvoker(List<URL> invokerUrls) { if (invokerUrls != null && invokerUrls.size() == 1 && invokerUrls.get(0) != null && Constants.EMPTY_PROTOCOL.equals(invokerUrls.get(0).getProtocol())) { this.forbidden = true; // Forbid to access this.methodInvokerMap = null; // Set the method invoker map to null destroyAllInvokers(); // Close all invokers } else { this.forbidden = false; // Allow to access Map<String, Invoker<T>> oldUrlInvokerMap = this.urlInvokerMap; // local reference if (invokerUrls.isEmpty() && this.cachedInvokerUrls != null) { invokerUrls.addAll(this.cachedInvokerUrls); } else { this.cachedInvokerUrls = new HashSet<URL>(); this.cachedInvokerUrls.addAll(invokerUrls);//Cached invoker urls, convenient for comparison } if (invokerUrls.isEmpty()) { return; } //生成Invoker方法 toInvokers Map<String, Invoker<T>> newUrlInvokerMap = toInvokers(invokerUrls);// Translate url list to Invoker map Map<String, List<Invoker<T>>> newMethodInvokerMap = toMethodInvokers(newUrlInvokerMap); // Change method name to map Invoker Map // state change // If the calculation is wrong, it is not processed. //如果計算錯誤，則不進行處理 if (newUrlInvokerMap == null || newUrlInvokerMap.size() == 0) { logger.error(new IllegalStateException("urls to invokers error .invokerUrls.size :" + invokerUrls.size() + ", invoker.size :0. urls :" + invokerUrls.toString())); return; } this.methodInvokerMap = multiGroup ? toMergeMethodInvokerMap(newMethodInvokerMap) : newMethodInvokerMap; this.urlInvokerMap = newUrlInvokerMap; try { destroyUnusedInvokers(oldUrlInvokerMap, newUrlInvokerMap); // Close the unused Invoker(關閉未使用的Invoker) } catch (Exception e) { logger.warn("destroyUnusedInvokers error. ", e); } } }
refreshInvoker() 方法會在 RegistryDirectory 類的 notify(List<URL> urls) 方法里調用，這個方法也是訂閱注冊中心回調方法.
以下是 toInvokers 方法:
/** * Turn urls into invokers, and if url has been refer, will not re-reference. * 將urls轉成invokers,如果url已經被refer過，不再重新引用。 * @param urls * @return invokers */ private Map<String, Invoker<T>> toInvokers(List<URL> urls) { Map<String, Invoker<T>> newUrlInvokerMap = new HashMap<String, Invoker<T>>(); if (urls == null || urls.isEmpty()) { return newUrlInvokerMap; } Set<String> keys = new HashSet<String>(); String queryProtocols = this.queryMap.get(Constants.PROTOCOL_KEY); for (URL providerUrl : urls) { // If protocol is configured at the reference side, only the matching protocol is selected //如果reference端配置了protocol，則只選擇匹配的protocol if (queryProtocols != null && queryProtocols.length() > 0) { boolean accept = false; String[] acceptProtocols = queryProtocols.split(","); for (String acceptProtocol : acceptProtocols) { if (providerUrl.getProtocol().equals(acceptProtocol)) { accept = true; break; } } if (!accept) { continue; } } if (Constants.EMPTY_PROTOCOL.equals(providerUrl.getProtocol())) { continue; } if (!ExtensionLoader.getExtensionLoader(Protocol.class).hasExtension(providerUrl.getProtocol())) { logger.error(new IllegalStateException("Unsupported protocol " + providerUrl.getProtocol() + " in notified url: " + providerUrl + " from registry " + getUrl().getAddress() + " to consumer " + NetUtils.getLocalHost() + ", supported protocol: " + ExtensionLoader.getExtensionLoader(Protocol.class).getSupportedExtensions())); continue; } URL url = mergeUrl(providerUrl); String key = url.toFullString(); // The parameter urls are sorted(URL參數是排序的) if (keys.contains(key)) { // Repeated url(重復URL) continue; } keys.add(key); // Cache key is url that does not merge with consumer side parameters, regardless of how the consumer combines parameters, if the server url changes, then refer again //緩存key為沒有合並消費端參數的URL，不管消費端如何合並參數，如果服務端URL發生變化，則重新refer Map<String, Invoker<T>> localUrlInvokerMap = this.urlInvokerMap; // local reference Invoker<T> invoker = localUrlInvokerMap == null ? null : localUrlInvokerMap.get(key); if (invoker == null) { // Not in the cache, refer again( 緩存中沒有，重新refer) try { boolean enabled = true; if (url.hasParameter(Constants.DISABLED_KEY)) { enabled = !url.getParameter(Constants.DISABLED_KEY, false); } else { enabled = url.getParameter(Constants.ENABLED_KEY, true); } if (enabled) { //這里是invoker的創建的地方 invoker = new InvokerDelegate<T>(protocol.refer(serviceType, url), url, providerUrl); } } catch (Throwable t) { logger.error("Failed to refer invoker for interface:" + serviceType + ",url:(" + url + ")" + t.getMessage(), t); } if (invoker != null) { // Put new invoker in cache(將新的引用放入緩存) newUrlInvokerMap.put(key, invoker); } } else { newUrlInvokerMap.put(key, invoker); } } keys.clear(); return newUrlInvokerMap; }
invoker = new InvokerDelegate<T>(protocol.refer(serviceType, url), url, providerUrl) 是 invoker 的創建語句。
InvokerDelegate 是 RegistryDirectory 的內部類：
/** * The delegate class, which is mainly used to store the URL address sent by the registry,and can be reassembled on the basis of providerURL queryMap overrideMap for re-refer. * 代理類，主要用於存儲注冊中心下發的url地址， 用於重新refer時能夠根據providerURL queryMap overrideMap重新組裝 * @param <T> */ private static class InvokerDelegate<T> extends InvokerWrapper<T> { private URL providerUrl; public InvokerDelegate(Invoker<T> invoker, URL url, URL providerUrl) { //調用父類構造方法 super(invoker, url); this.providerUrl = providerUrl; } public URL getProviderUrl() { return providerUrl; } }
invoke 方法在其父類 InvokerWrapper 里實現:
@Override public Result invoke(Invocation invocation) throws RpcException { //這里的invoker是從它的構造方法里傳入的 return invoker.invoke(invocation); }
所以方法棧里可以看到下面一行棧信息:
at com.alibaba.dubbo.rpc.protocol.InvokerWrapper.invoke(InvokerWrapper.java:56)
InvokerDelegete 構造方法調用的父類 InvokerWrapper 的構造方法並傳入 invoker ，回頭看 new InvokerDelegete<T>(protocol.refer(serviceType, url), url, providerUrl); 這句。可知上面的 invoker 是由 protocol.refer(serviceType, url) 創建的。
通過debug,可知這里的 protocol 是 Protocol$Adpative 類型，這里的url的Protocol是dubbo,通過spi可以得到這里最后走 DubboProtocol 類refer方法但是由於 Protocal 接口實現中，有兩個包裝類:
filter=com.alibaba.dubbo.rpc.protocol.ProtocolFilterWrapper
listener=com.alibaba.dubbo.rpc.protocol.ProtocolListenerWrapper
所以這里先執行 ProtocolFilterWrapper 的 refer 方法，再執行 ProtocolListenerWrapper 的 refer 方法，最后才執行 DubboProtocol 類 refer 方法。
ProtocolFilterWrapper 的 refer 方法如下：
@Override public <T> Invoker<T> refer(Class<T> type, URL url) throws RpcException { if (Constants.REGISTRY_PROTOCOL.equals(url.getProtocol())) { return protocol.refer(type, url); } return buildInvokerChain(protocol.refer(type, url), Constants.REFERENCE_FILTER_KEY, Constants.CONSUMER); } private static <T> Invoker<T> buildInvokerChain(final Invoker<T> invoker, String key, String group) { Invoker<T> last = invoker; //先獲取激活的過濾器，我們這里手動配置了monitor MonitorFilter過濾器， // 另外兩個自動激活的過濾器是FutureFilter，ConsumerContextFilter //這里需要看spi機制的getActivateExtension方法相關代碼 List<Filter> filters = ExtensionLoader.getExtensionLoader(Filter.class).getActivateExtension(invoker.getUrl(), key, group); if (!filters.isEmpty()) { for (int i = filters.size() - 1; i >= 0; i--) { final Filter filter = filters.get(i); final Invoker<T> next = last; last = new Invoker<T>() { @Override public Class<T> getInterface() { return invoker.getInterface(); } @Override public URL getUrl() { return invoker.getUrl(); } @Override public boolean isAvailable() { return invoker.isAvailable(); } //實現invoker的 invoke方法 @Override public Result invoke(Invocation invocation) throws RpcException { //嵌套進過濾器鏈 return filter.invoke(next, invocation); } @Override public void destroy() { invoker.destroy(); } @Override public String toString() { return invoker.toString(); } }; } } return last; }
所以有以下調用棧信息：
at com.alibaba.dubbo.monitor.support.MonitorFilter.invoke(MonitorFilter.java:75) at com.alibaba.dubbo.rpc.protocol.ProtocolFilterWrapper$1.invoke(ProtocolFilterWrapper.java:72) at com.alibaba.dubbo.rpc.protocol.dubbo.filter.FutureFilter.invoke(FutureFilter.java:54) at com.alibaba.dubbo.rpc.protocol.ProtocolFilterWrapper$1.invoke(ProtocolFilterWrapper.java:72) at com.alibaba.dubbo.rpc.filter.ActiveLimitFilter.invoke(ActiveLimitFilter.java:70) at com.alibaba.dubbo.rpc.protocol.ProtocolFilterWrapper$1.invoke(ProtocolFilterWrapper.java:72) at com.alibaba.dubbo.rpc.filter.ConsumerContextFilter.invoke(ConsumerContextFilter.java:49) at com.alibaba.dubbo.rpc.protocol.ProtocolFilterWrapper$1.invoke(ProtocolFilterWrapper.java:72)
接着 ProtocolListenerWrapper 的 refer 方法:
@Override public <T> Invoker<T> refer(Class<T> type, URL url) throws RpcException { if (Constants.REGISTRY_PROTOCOL.equals(url.getProtocol())) { return protocol.refer(type, url); } return new ListenerInvokerWrapper<T>(protocol.refer(type, url), //獲取激活的監聽器，目前dubbo沒有提供合適的監聽器,只有一個DeprecatedInvokerListener實現類，還是個Deprecated的 //所以這里為空 Collections.unmodifiableList( ExtensionLoader.getExtensionLoader(InvokerListener.class).getActivateExtension(url, Constants.INVOKER_LISTENER_KEY))); }
這個可以解釋下面這句堆棧信息：
at com.alibaba.dubbo.rpc.listener.ListenerInvokerWrapper.invoke(ListenerInvokerWrapper.java:77)
最后看下 DubboProtocol 類 refer 方法，這里創建了 DubboInvoker 對象:
@Override public <T> Invoker<T> refer(Class<T> serviceType, URL url) throws RpcException { optimizeSerialization(url); // create rpc invoker. DubboInvoker<T> invoker = new DubboInvoker<T>(serviceType, url, getClients(url), invokers); invokers.add(invoker); return invoker; }
DubboInvoker 的父類 AbstractInvoker 實現了 invoke 方法:
@Override public Result invoke(Invocation inv) throws RpcException { // if invoker is destroyed due to address refresh from registry, let's allow the current invoke to proceed if (destroyed.get()) { logger.warn("Invoker for service " + this + " on consumer " + NetUtils.getLocalHost() + " is destroyed, " + ", dubbo version is " + Version.getVersion() + ", this invoker should not be used any longer"); } RpcInvocation invocation = (RpcInvocation) inv; invocation.setInvoker(this); if (attachment != null && attachment.size() > 0) { invocation.addAttachmentsIfAbsent(attachment); } Map<String, String> contextAttachments = RpcContext.getContext().getAttachments(); if (contextAttachments != null && contextAttachments.size() != 0) { /** * invocation.addAttachmentsIfAbsent(context){@link RpcInvocation#addAttachmentsIfAbsent(Map)}should not be used here, * because the {@link RpcContext#setAttachment(String, String)} is passed in the Filter when the call is triggered * by the built-in retry mechanism of the Dubbo. The attachment to update RpcContext will no longer work, which is * a mistake in most cases (for example, through Filter to RpcContext output traceId and spanId and other information). */ invocation.addAttachments(contextAttachments); } if (getUrl().getMethodParameter(invocation.getMethodName(), Constants.ASYNC_KEY, false)) { invocation.setAttachment(Constants.ASYNC_KEY, Boolean.TRUE.toString()); } RpcUtils.attachInvocationIdIfAsync(getUrl(), invocation); try { //doInvoke 具體實現在子類中 return doInvoke(invocation); } catch (InvocationTargetException e) { // biz exception Throwable te = e.getTargetException(); if (te == null) { return new RpcResult(e); } else { if (te instanceof RpcException) { ((RpcException) te).setCode(RpcException.BIZ_EXCEPTION); } return new RpcResult(te); } } catch (RpcException e) { if (e.isBiz()) { return new RpcResult(e); } else { throw e; } } catch (Throwable e) { return new RpcResult(e); } }
DubboInvoker 實現的 doInvoke 方法:
@Override protected Result doInvoke(final Invocation invocation) throws Throwable { RpcInvocation inv = (RpcInvocation) invocation; final String methodName = RpcUtils.getMethodName(invocation); inv.setAttachment(Constants.PATH_KEY, getUrl().getPath()); inv.setAttachment(Constants.VERSION_KEY, version); ExchangeClient currentClient; if (clients.length == 1) { currentClient = clients[0]; } else { currentClient = clients[index.getAndIncrement() % clients.length]; } try { boolean isAsync = RpcUtils.isAsync(getUrl(), invocation); boolean isOneway = RpcUtils.isOneway(getUrl(), invocation); int timeout = getUrl().getMethodParameter(methodName, Constants.TIMEOUT_KEY, Constants.DEFAULT_TIMEOUT); if (isOneway) { boolean isSent = getUrl().getMethodParameter(methodName, Constants.SENT_KEY, false); currentClient.send(inv, isSent); RpcContext.getContext().setFuture(null); return new RpcResult(); } else if (isAsync) { ResponseFuture future = currentClient.request(inv, timeout); RpcContext.getContext().setFuture(new FutureAdapter<Object>(future)); return new RpcResult(); } else { RpcContext.getContext().setFuture(null); //實際的請求語句 ，這里的currentClient是自身對象屬性clients[0]值 return (Result) currentClient.request(inv, timeout).get(); } } catch (TimeoutException e) { throw new RpcException(RpcException.TIMEOUT_EXCEPTION, "Invoke remote method timeout. method: " + invocation.getMethodName() + ", provider: " + getUrl() + ", cause: " + e.getMessage(), e); } catch (RemotingException e) { throw new RpcException(RpcException.NETWORK_EXCEPTION, "Failed to invoke remote method: " + invocation.getMethodName() + ", provider: " + getUrl() + ", cause: " + e.getMessage(), e); } }
所以有以下兩句調用棧輸出信息:
at com.alibaba.dubbo.rpc.protocol.dubbo.DubboInvoker.doInvoke(DubboInvoker.java:95)
at com.alibaba.dubbo.rpc.protocol.AbstractInvoker.invoke(AbstractInvoker.java:155)
接下來看用於發起請求的 currentClient 對象的的實現，它的實現可追蹤到 DubboProtocol 類 refer 方法里：
@Override public <T> Invoker<T> refer(Class<T> serviceType, URL url) throws RpcException { optimizeSerialization(url); // create rpc invoker. //getClients(url) 創建 DubboInvoker 屬性clients對象, DubboInvoker<T> invoker = new DubboInvoker<T>(serviceType, url, getClients(url), invokers); invokers.add(invoker); return invoker; } private ExchangeClient[] getClients(URL url) { // whether to share connection //是否共享連接 boolean service_share_connect = false; int connections = url.getParameter(Constants.CONNECTIONS_KEY, 0); // if not configured, connection is shared, otherwise, one connection for one service //如果connections不配置，則共享連接，否則一個連接一個服務 if (connections == 0) { service_share_connect = true; connections = 1; } ExchangeClient[] clients = new ExchangeClient[connections]; for (int i = 0; i < clients.length; i++) { if (service_share_connect) { //獲取共享連接 clients[i] = getSharedClient(url); } else { //初始化client,本例子不是共享連接，走這個邏輯 clients[i] = initClient(url); } } return clients; } /** * Create new connection */ private ExchangeClient initClient(URL url) { // client type setting. String str = url.getParameter(Constants.CLIENT_KEY, url.getParameter(Constants.SERVER_KEY, Constants.DEFAULT_REMOTING_CLIENT)); url = url.addParameter(Constants.CODEC_KEY, DubboCodec.NAME); // enable heartbeat by default //默認開啟heartbeat url = url.addParameterIfAbsent(Constants.HEARTBEAT_KEY, String.valueOf(Constants.DEFAULT_HEARTBEAT)); // BIO is not allowed since it has severe performance issue. // BIO存在嚴重性能問題，暫時不允許使用 if (str != null && str.length() > 0 && !ExtensionLoader.getExtensionLoader(Transporter.class).hasExtension(str)) { throw new RpcException("Unsupported client type: " + str + "," + " supported client type is " + StringUtils.join(ExtensionLoader.getExtensionLoader(Transporter.class).getSupportedExtensions(), " ")); } ExchangeClient client; try { // connection should be lazy //設置連接應該是lazy的 if (url.getParameter(Constants.LAZY_CONNECT_KEY, false)) { client = new LazyConnectExchangeClient(url, requestHandler); } else { //通過 Exchangers.connect(url, requestHandler); 構建client ，接下來跟蹤Exchangers.connect方法 //這里會傳入一個requestHandler，這個是客戶端接收服務端方法返回回調的 client = Exchangers.connect(url, requestHandler); } } catch (RemotingException e) { throw new RpcException("Fail to create remoting client for service(" + url + "): " + e.getMessage(), e); } return client; }
這里用到了 facade 設計模式， Exchangers 是個門面類，封裝了具體查找合適的 Exchanger 實現，並調用 connect 方法返回 ExchangeClient 的過程，相關方法代碼如下:
public static ExchangeClient connect(URL url, ExchangeHandler handler) throws RemotingException { if (url == null) { throw new IllegalArgumentException("url == null"); } if (handler == null) { throw new IllegalArgumentException("handler == null"); } url = url.addParameterIfAbsent(Constants.CODEC_KEY, "exchange"); //把codec key 設置為exchange return getExchanger(url).connect(url, handler); } public static Exchanger getExchanger(URL url) { String type = url.getParameter(Constants.EXCHANGER_KEY, Constants.DEFAULT_EXCHANGER); //通過exchanger key 獲取 Exchanger的spi實現，默認是header，這里是HeaderExchanger類 return getExchanger(type); } public static Exchanger getExchanger(String type) { //這里返回Exchanger接口的header擴展類HeaderExchanger return ExtensionLoader.getExtensionLoader(Exchanger.class).getExtension(type); }
HeaderExchanger 類 connect 方法如下:
public class HeaderExchanger implements Exchanger { public static final String NAME = "header"; //客戶端的連接操作 @Override public ExchangeClient connect(URL url, ExchangeHandler handler) throws RemotingException { //返回HeaderExchangeClient對象 return new HeaderExchangeClient(Transporters.connect(url, new DecodeHandler(new HeaderExchangeHandler(handler))), true); } @Override public ExchangeServer bind(URL url, ExchangeHandler handler) throws RemotingException { return new HeaderExchangeServer(Transporters.bind(url, new DecodeHandler(new HeaderExchangeHandler(handler)))); } }
所以有棧信息：
at com.alibaba.dubbo.remoting.exchange.support.header.HeaderExchangeClient.request(HeaderExchangeClient.java:90)
再看 HeaderExchangeClient 的 request 方法:
@Override public ResponseFuture request(Object request) throws RemotingException { //這里channel對象是從類構造函數中賦值，this.channel = new HeaderExchangeChannel(client);如下 return channel.request(request); } public HeaderExchangeClient(Client client, boolean needHeartbeat) { if (client == null) { throw new IllegalArgumentException("client == null"); } this.client = client; this.channel = new HeaderExchangeChannel(client);//channel賦值 String dubbo = client.getUrl().getParameter(Constants.DUBBO_VERSION_KEY); this.heartbeat = client.getUrl().getParameter(Constants.HEARTBEAT_KEY, dubbo != null && dubbo.startsWith("1.0.") ? Constants.DEFAULT_HEARTBEAT : 0); this.heartbeatTimeout = client.getUrl().getParameter(Constants.HEARTBEAT_TIMEOUT_KEY, heartbeat * 3); if (heartbeatTimeout < heartbeat * 2) { throw new IllegalStateException("heartbeatTimeout < heartbeatInterval * 2"); } if (needHeartbeat) { startHeartbeatTimer(); } }
所以有棧信息：
atcom.alibaba.dubbo.remoting.exchange.support.header.HeaderExchangeChannel.request(HeaderExchangeChannel.java:116)
繼續查看 HeaderExchangeChannel 類 request 方法:
@Override public ResponseFuture request(Object request) throws RemotingException { return request(request, channel.getUrl().getPositiveParameter(Constants.TIMEOUT_KEY, Constants.DEFAULT_TIMEOUT)); } @Override public ResponseFuture request(Object request, int timeout) throws RemotingException { if (closed) { throw new RemotingException(this.getLocalAddress(), null, "Failed to send request " + request + ", cause: The channel " + this + " is closed!"); } // create request. Request req = new Request(); req.setVersion(Version.getProtocolVersion()); req.setTwoWay(true); req.setData(request); DefaultFuture future = new DefaultFuture(channel, req, timeout); try { //通過具體channel 發送請求 channel.send(req); } catch (RemotingException e) { future.cancel(); throw e; } return future; }
這里有 channel 對象，這里的 channel 對象也是通過 HeaderExchangeChannel 類的構造函數，從上層方法傳進來的,而 HeaderExchangeChannel 是由 HeaderExchangeClient 構造的， HeaderExchangeClient 對象是由 HeaderExchanger 的 connect 方法里創建的。這里回到 HeaderExchanger 的 connect 方法：
/** * DefaultMessenger * * */ public class HeaderExchanger implements Exchanger { public static final String NAME = "header"; @Override public ExchangeClient connect(URL url, ExchangeHandler handler) throws RemotingException { return new HeaderExchangeClient(Transporters.connect(url, new DecodeHandler(new HeaderExchangeHandler(handler))), true); } @Override public ExchangeServer bind(URL url, ExchangeHandler handler) throws RemotingException { return new HeaderExchangeServer(Transporters.bind(url, new DecodeHandler(new HeaderExchangeHandler(handler)))); } }
可以看到上文中 HeaderExchangeChannel 類中發送消息的 channel 對象是 Transporters.connect(url, new DecodeHandler(new HeaderExchangeHandler(handler))) 這句創建的。這里的 Transporters 也是個門面類，是 facade 設計模式的實現， Transporters 具體 connect 方法實現如下：
public static Client connect(URL url, ChannelHandler... handlers) throws RemotingException { if (url == null) { throw new IllegalArgumentException("url == null"); } ChannelHandler handler; if (handlers == null || handlers.length == 0) { handler = new ChannelHandlerAdapter(); } else if (handlers.length == 1) { handler = handlers[0]; } else { handler = new ChannelHandlerDispatcher(handlers); } //這里具體走 NettyTransporter.connect // public Client connect(URL url, ChannelHandler listener) throws RemotingException { // return new NettyClient(url, listener); // } /所以這里默認返回的NettyClient return getTransporter().connect(url, handler); } //這個方法根據spi返回NettyTransporter擴展類 public static Transporter getTransporter() { //這里通過生成的Transporter$Adaptive 的實現如下： return ExtensionLoader.getExtensionLoader(Transporter.class).getAdaptiveExtension(); }
所以最后是通過 NettyClient 類實例的 send 方法發送的具體請求， NettyClient 類 send 方法實現在其祖先類 AbstractPeer 中:
@Override public void send(Object message) throws RemotingException { send(message, url.getParameter(Constants.SENT_KEY, false)); }
這個實現又調用 NettyClient 父類 AbstractClient 的 send 方法實現:
@Override public void send(Object message, boolean sent) throws RemotingException { if (send_reconnect && !isConnected()) { connect(); } //獲取具體channel實例 Channel channel = getChannel(); //TODO Can the value returned by getChannel() be null? need improvement. //TODO getChannel返回的狀態是否包含null需要改進 if (channel == null || !channel.isConnected()) { throw new RemotingException(this, "message can not send, because channel is closed . url:" + getUrl()); } channel.send(message, sent); }
這里的 getChannel() 方法由NettyClient自身實現，如下：
@Override protected com.alibaba.dubbo.remoting.Channel getChannel() { Channel c = channel; if (c == null || !c.isConnected()) return null; return NettyChannel.getOrAddChannel(c, getUrl(), this); } //再到NettyChannel.getOrAddChannel方法 static NettyChannel getOrAddChannel(org.jboss.netty.channel.Channel ch, URL url, ChannelHandler handler) { if (ch == null) { return null; } //返回NettyChannel類 NettyChannel ret = channelMap.get(ch); if (ret == null) { NettyChannel nc = new NettyChannel(ch, url, handler); if (ch.isConnected()) { ret = channelMap.putIfAbsent(ch, nc); } if (ret == null) { ret = nc; } } return ret; }
所以有以下棧信息：
at com.alibaba.dubbo.remoting.transport.netty.NettyChannel.send(NettyChannel.java:100) at com.alibaba.dubbo.remoting.transport.AbstractClient.send(AbstractClient.java:265) at com.alibaba.dubbo.remoting.transport.AbstractPeer.send(AbstractPeer.java:53)
后面就是jboss內部的調用和消息轉換：
at org.jboss.netty.channel.SimpleChannelHandler.handleDownstream(SimpleChannelHandler.java:266) at org.jboss.netty.channel.DefaultChannelPipeline.sendDownstream(DefaultChannelPipeline.java:591) at org.jboss.netty.channel.DefaultChannelPipeline.sendDownstream(DefaultChannelPipeline.java:582) at org.jboss.netty.channel.Channels.write(Channels.java:611) at org.jboss.netty.channel.Channels.write(Channels.java:578) at org.jboss.netty.channel.AbstractChannel.write(AbstractChannel.java:251)
最后就走到開始打斷點的 NettyHandler 類 writeRequested 方法：
at com.alibaba.dubbo.remoting.transport.netty.NettyHandler.writeRequested(NettyHandler.java:98)
