RabbitMQ詳解（三）------RabbitMQ的五種模式

本文轉載自查看原文 2018-08-25 21:15 11413

RabbitMQ詳解（三）------RabbitMQ的五種模式

1.簡單隊列(模式)

上一篇文章末尾的實例給出的代碼就是簡單模式.

一個生產者對應一個消費者!!!

pom.xml

必須導入RabbitMQ依賴包

<!--RabbitMQ-client-->
        <dependency>
            <groupId>com.rabbitmq</groupId>
            <artifactId>amqp-client</artifactId>
            <version>3.6.2</version>
        </dependency>

ConnectionUtil.java

package org.alva.Utils;

import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * <一句話描述>,RabbitMQ的連接工具類
 * <詳細介紹>,
 *
 */
public class ConnectionUtil {
    public static Connection getConnection(String host, int port, String vhost, String username, String password) throws IOException, TimeoutException {
        //1.定義連接工廠
        ConnectionFactory connectionFactory = new ConnectionFactory();
        //2.設置服務器地址
        connectionFactory.setHost(host);
        //3.設置端口
        connectionFactory.setPort(port);
        //4.設置虛擬主機,用戶名,密碼
        connectionFactory.setVirtualHost(vhost);
        connectionFactory.setUsername(username);
        connectionFactory.setPassword(password);

        //5.通過連接工廠獲取連接
        Connection connection = connectionFactory.newConnection();
        return connection;
    }
}

Consumer.java

package org.alva.RabbitMQ;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.QueueingConsumer;
import org.alva.Utils.ConnectionUtil;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * <一句話描述>,消費者
 * <詳細介紹>,
 *
 */
public class Consumer {
    private final static String QUEUE_NAME = "hello";

    public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {
        //1.獲取連接
        Connection connection = ConnectionUtil.getConnection("localhost", 5672, "/", "guest", "guest");
        //2.聲明通道
        Channel channel = connection.createChannel();
        //3.聲明隊列
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        //4.定義隊列的消費者
        QueueingConsumer queueingConsumer = new QueueingConsumer(channel);
        //5.監聽隊列
        /*
            true:表示自動確認,只要消息從隊列中獲取,無論消費者獲取到消息后是否成功消費,都會認為消息成功消費.
            false:表示手動確認,消費者獲取消息后,服務器會將該消息標記為不可用狀態,等待消費者的反饋,
            如果消費者一直沒有反饋,那么該消息將一直處於不可用狀態,並且服務器會認為該消費者已經掛掉,不會再給其發送消息,
            直到該消費者反饋.
        */
        channel.basicConsume(QUEUE_NAME,true,queueingConsumer);
        //6.獲取消息
        while (true){
            QueueingConsumer.Delivery delivery = queueingConsumer.nextDelivery();
            String message = new String(delivery.getBody());
            System.out.println("[x] Received '" + message + "'");
        }
    }
}

Productor.java

package org.alva.RabbitMQ;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import org.alva.Utils.ConnectionUtil;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * <一句話描述>,生產者
 * <詳細介紹>,
 *
 */
public class Producer {
    private final static String QUEUE_NAME = "hello";

    public static void main(String[] args) throws IOException, TimeoutException {
        //1.獲取連接
        Connection connection = ConnectionUtil.getConnection("localhost", 5672, "/", "guest", "guest");
        //2.聲明通道
        Channel channel = connection.createChannel();
        //3.聲明(創建)隊列
        channel.queueDeclare(QUEUE_NAME,false,false,false,null);
        //4.定義消息內容
        String message = "hello rabbitmq";
        //5.發布消息
        channel.basicPublish("",QUEUE_NAME,null,message.getBytes());
        System.out.println("[x] send'"+message+"'");
        //6.關閉通道和連接
        channel.close();
        connection.close();

    }
}

2.work模式

一個生產者對應多個消費者,但是只能有一個消費者獲得消息!!!

競爭消費者模式.

生產者

package org.alva.RabbitMQ.WorkModel;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import org.alva.Utils.ConnectionUtil;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * <一句話描述>,生產者
 * <詳細介紹>,Work模式下的生產者
 *
 */
public class Producter {
    public static final String QUEUE_NAME = "work_queue";

    public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {
        //1.獲取連接
        Connection connection = ConnectionUtil.getConnection("localhost", 5672, "/", "guest", "guest");
        //2.聲明信道
        Channel channel = connection.createChannel();
        //3.聲明(創建)隊列
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        //4.定義消息內容,發布多條消息
        for (int i = 0; i < 10; i++) {
            String message = "hello rabbitmq " + i;
            //5.發布消息
            channel.basicPublish("", QUEUE_NAME, null, message.getBytes());
            System.out.println("[x] send message is '" + message + "'");
            //6.模擬發送消息延時,便於展示多個消費者競爭接受消息
            Thread.sleep(i * 10);
        }
        //7.關閉信道
        channel.close();
        //8.關閉連接
        connection.close();
    }
}

消費者

需要創建兩個消費者.

消費者1:每接收一條消息后休眠10毫秒.

package org.alva.RabbitMQ.WorkModel;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.QueueingConsumer;
import org.alva.Utils.ConnectionUtil;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * <一句話描述>,消費者
 * <詳細介紹>,Work模式下的消費者
 *
 */
public class Consumer1 {
    public static final String QUEUE_NAME = "work_queue";

    public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {
        //1.獲取連接
        Connection connection = ConnectionUtil.getConnection("localhost", 5672, "/", "guest", "guest");
        //2.聲明通道
        Channel channel = connection.createChannel();
        //3.聲明隊列
        channel.queueDeclare(QUEUE_NAME,false,false,false,null);
        //同一時刻服務器只會發送一條消息給消費者
//        channel.basicQos(1);

        //4.定義隊列的消費者
        QueueingConsumer queueingConsumer = new QueueingConsumer(channel);
        //5.監聽隊列,手動返回完成狀態
        channel.basicConsume(QUEUE_NAME,false,queueingConsumer);
        //6.獲取消息
        while (true){
            QueueingConsumer.Delivery delivery = queueingConsumer.nextDelivery();
            String message = new String(delivery.getBody());
            System.out.println("[x] received message : '"+message+"'");
            //休眠10毫秒
            Thread.sleep(10);
            //返回確認狀態
            channel.basicAck(delivery.getEnvelope().getDeliveryTag(),false);
        }
    }
}

消費者2:每接收一條消息后休眠1000毫秒

package org.alva.RabbitMQ.WorkModel;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.QueueingConsumer;
import org.alva.Utils.ConnectionUtil;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * <一句話描述>,
 * <詳細介紹>,
 *
 */
public class Consumer2 {
    public static final String QUEUE_NAME = "work_queue";

    public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {
        Connection connection = ConnectionUtil.getConnection("localhost", 5672, "/", "guest", "guest");
        Channel channel = connection.createChannel();
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
//        channel.basicQos(1);
        QueueingConsumer queueingConsumer = new QueueingConsumer(channel);
        channel.basicConsume(QUEUE_NAME,false,queueingConsumer);
        while (true){
            QueueingConsumer.Delivery delivery = queueingConsumer.nextDelivery();
            String message = new String(delivery.getBody());
            System.out.println("[x] received message : '" + message + "'");
            Thread.sleep(1000);
            channel.basicAck(delivery.getEnvelope().getDeliveryTag(),false);
        }
    }
}

測試結果

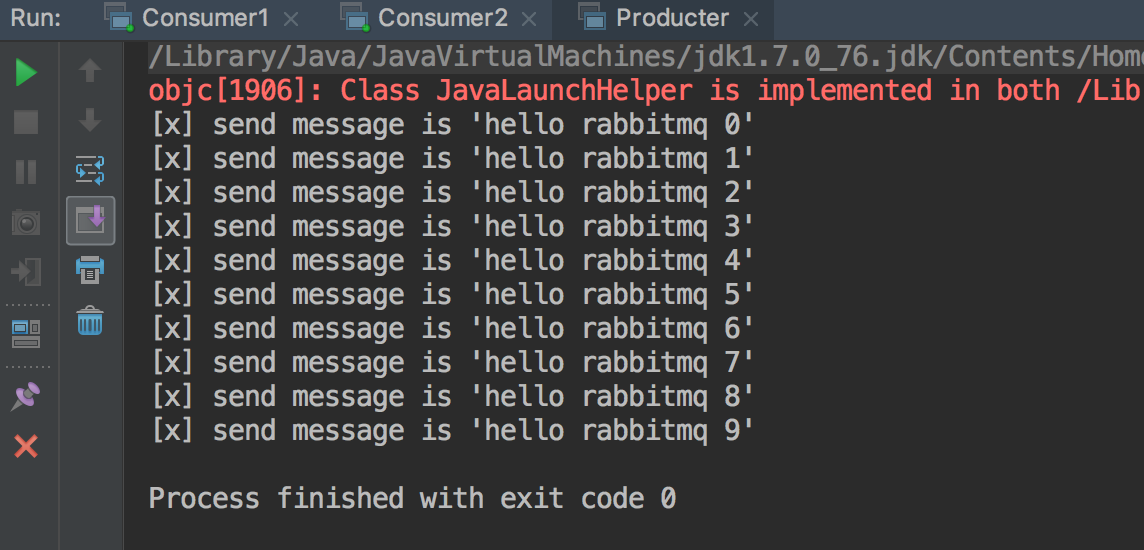

1. 首先生產者一次打印從0-9條消息
2. 然后是消費者1:結果為打印偶數條消息(注:先啟動的消費者為消費者1)

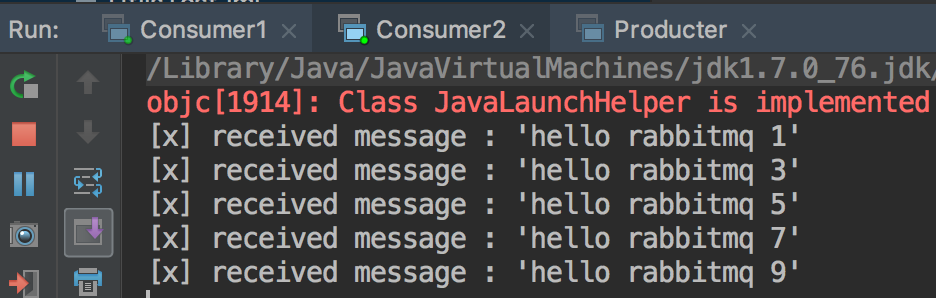

3. 消費者2:結果為打印奇數條消息
結論:

*消費者1和消費者2獲取到的消息內容是不同的,也就是說同一個消息只能被一個消費者獲取.

*消費者1和消費者2分別獲取奇數條消息和偶數條消息,兩種獲取消息的條數是一樣的.

前面我們說這種模式是競爭消費者模式,一條隊列被多個消費者監聽,這里兩個消費者,其中消費者1和消費者2在獲取消息后分別休眠了10毫秒和1000毫秒,也就是說兩個消費者獲取消息的效率是不一樣的,但是結果卻是兩者獲得的消息條數是一樣的,這根本不構成競爭關系,那么我們應該怎么辦才能讓工作效率更高的消費者獲取消息更多,也就是消費者1獲取消息更多呢?
1. 能者多勞
```
channel.basicQos(1);
```

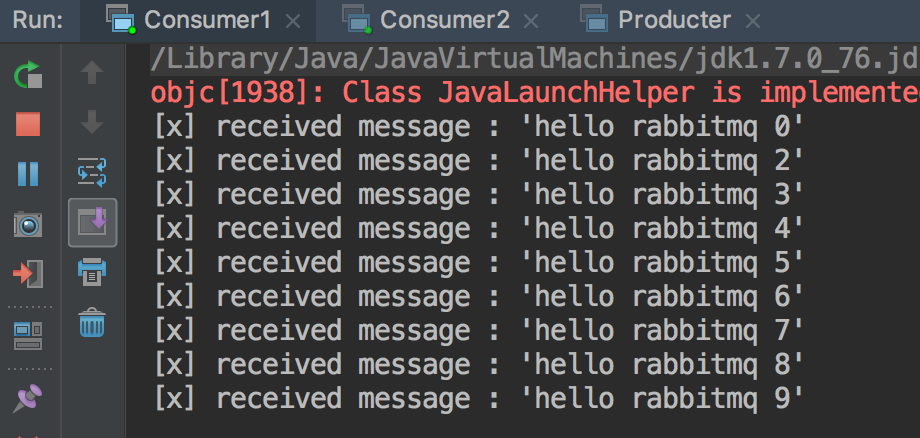

  增加如上代碼,表示同一時刻服務器只會發送一條消息給消費者.消費者1和消費者2獲取消息結果如下:
2. 應用場景

  效率高的消費者消費消息多,可以用來進行負載均衡.

3.發布/訂閱模式

一個消費者將消息首先發送到交換器,交換器綁定多個隊列,然后被監聽該隊列的消費者所接收並消費.

*在RabbitMQ中,交換器主要有四種類型:direct,fanout,topic,headers,這里的交換器是fanout.

生產者

package org.alva.RabbitMQ.PublishModel;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import org.alva.Utils.ConnectionUtil;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * <一句話描述>,發布/訂閱模式下的生產者
 * <詳細介紹>,
 *
 */
public class Producer {
    private final static String EXCHANGE_NAME = "fanout_exchange";

    public static void main(String[] args) throws IOException, TimeoutException {
        //1.獲取連接
        Connection connection = ConnectionUtil.getConnection("localhost", 5674, "/", "guest", "guest");
        //2.聲明信道
        Channel channel = connection.createChannel();
        //3.聲明交換器
        channel.exchangeDeclare(EXCHANGE_NAME, "fanout");
        //4.定義消息內容
        String message = "hello rabbitmq";
        //5.發布消息
        channel.basicPublish(EXCHANGE_NAME, "", null, message.getBytes());
        System.out.println("[x] send'" + message + "'");
        //6.關閉通道和連接
        channel.close();
        connection.close();

    }
}

消費者

消費者1:

package org.alva.RabbitMQ.PublishModel;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.QueueingConsumer;
import org.alva.Utils.ConnectionUtil;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * <一句話描述>,消費者
 * <詳細介紹>,發布/訂閱模式下的消費者
 *
 */
public class Consumer1 {
    public static final String QUEUE_NAME = "fanout_queue_1";

    public static final String EXCHANGE_NAME = "fanout_exchange";

    public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {
        //1.獲取連接
        Connection connection = ConnectionUtil.getConnection("localhost", 5672, "/", "guest", "guest");
        //2.聲明信道
        Channel channel = connection.createChannel();
        //3.聲明交換器
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        //4.綁定隊列到交換器
        channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "");
        //同一時刻服務器只會發送一條消息給消費者
        channel.basicQos(1);

        //5.定義隊列的消費者
        QueueingConsumer queueingConsumer = new QueueingConsumer(channel);
        //5.監聽隊列,手動返回完成狀態
        channel.basicConsume(QUEUE_NAME, false, queueingConsumer);
        //6.獲取消息
        while (true) {
            QueueingConsumer.Delivery delivery = queueingConsumer.nextDelivery();
            String message = new String(delivery.getBody());
            System.out.println("[消費者1] received message : '" + message + "'");
            //休眠10毫秒
            Thread.sleep(10);
            //返回確認狀態
            channel.basicAck(delivery.getEnvelope().getDeliveryTag(), false);
        }
    }
}

消費者2:

package org.alva.RabbitMQ.PublishModel;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.QueueingConsumer;
import org.alva.Utils.ConnectionUtil;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * <一句話描述>,
 * <詳細介紹>,
 *
 */
public class Consumer2 {
    public static final String QUEUE_NAME = "fanout_queue_2";

    private final static String EXCHANGE_NAME = "fanout_exchange";

    public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {
        Connection connection = ConnectionUtil.getConnection("localhost", 5672, "/", "guest", "guest");
        Channel channel = connection.createChannel();
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        channel.queueBind(QUEUE_NAME,EXCHANGE_NAME,"");
        channel.basicQos(1);
        QueueingConsumer queueingConsumer = new QueueingConsumer(channel);
        channel.basicConsume(QUEUE_NAME, false, queueingConsumer);
        while (true) {
            QueueingConsumer.Delivery delivery = queueingConsumer.nextDelivery();
            String message = new String(delivery.getBody());
            System.out.println("[消費者2] received message : '" + message + "'");
            Thread.sleep(1000);
            channel.basicAck(delivery.getEnvelope().getDeliveryTag(), false);
        }
    }
}

注意:消費者1和消費者2兩者監聽的隊列名稱是不一樣的.

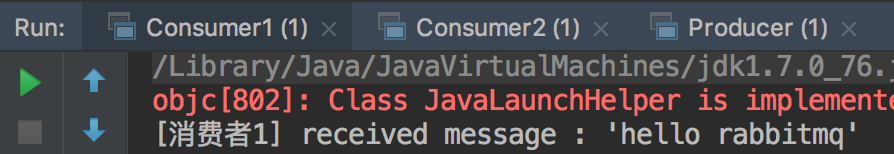

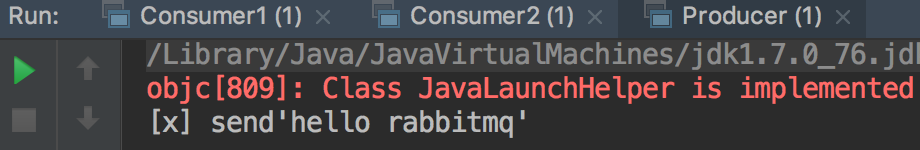

測試結果

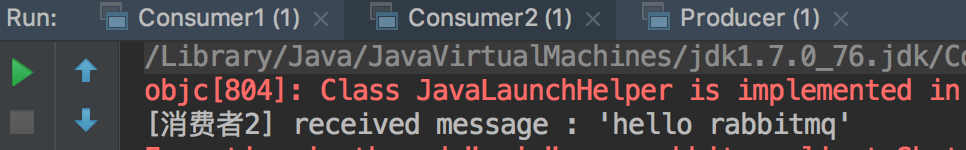

消費者1和消費者2都消費了該消息.

ps:這是因為消費者1和消費者2都監聽了被同一個交換器綁定的隊列.如果消息發送到沒有隊列綁定的交換器時,消息將丟失,因為交換器沒有存儲消息的能力,消息只能存儲在隊列中.
應用場景:

比如一個商城系統需要在管理員上傳新的商品圖片時,前台系統必須更新圖片,日志系統必須記錄相應的日志,那么就可以將兩個隊列綁定到圖片上傳交換器上,一個用於前台系統剛更新圖片,另一個用於日志系統記錄日志.

4.路由模式

生產者將消息發送到direct交換器,在綁定隊列和交換器的時候有一個路由key,生產者發送的消息會指定一個路由key,那么消息只會發送到相應key相同的隊列,接着監聽該隊列的消費者消費信息.

生產者

package org.alva.RabbitMQ.DirectExchange;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import org.alva.Utils.ConnectionUtil;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * <一句話描述>,路由模式下的生產者
 * <詳細介紹>,
 *
 */
public class Producer {
    private final static String EXCHANGE_NAME = "direct_exchange";

    public static void main(String[] args) throws IOException, TimeoutException {
        //1.獲取連接
        Connection connection = ConnectionUtil.getConnection("localhost", 5674, "/", "guest", "guest");
        //2.聲明信道
        Channel channel = connection.createChannel();
        //3.聲明交換器,類型為direct
        channel.exchangeDeclare(EXCHANGE_NAME, "direct");
        //4.定義消息內容
        String message = "hello rabbitmq";
        //5.發布消息
        channel.basicPublish(EXCHANGE_NAME, "update", null, message.getBytes());
        System.out.println("[x] send'" + message + "'");
        //6.關閉通道和連接
        channel.close();
        connection.close();

    }
}

消費者

消費者1:

package org.alva.RabbitMQ.DirectExchange;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.QueueingConsumer;
import org.alva.Utils.ConnectionUtil;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * <一句話描述>,消費者
 * <詳細介紹>,路由模式下的消費者1
 * <p>
 * 這種模式添加了一個路由鍵，生產者發布消息的時候添加路由鍵，消費者綁定隊列到交換機時添加鍵值，
 * 這樣就可以接收到需要接收的消息。
 *
 */
public class Consumer1 {
    public static final String QUEUE_NAME = "direct_queue_1";

    public static final String EXCHANGE_NAME = "direct_exchange";

    public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {
        //1.獲取連接
        Connection connection = ConnectionUtil.getConnection("localhost", 5672, "/", "guest", "guest");
        //2.聲明信道
        Channel channel = connection.createChannel();
        //3.聲明隊列
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        //4.綁定隊列到交換器,指定路由key為update
        channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "update");
        channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "delete");
        channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "add");
        //同一時刻服務器只會發送一條消息給消費者
        channel.basicQos(1);

        //5.定義隊列的消費者
        QueueingConsumer queueingConsumer = new QueueingConsumer(channel);
        //5.監聽隊列,手動返回完成狀態
        channel.basicConsume(QUEUE_NAME, false, queueingConsumer);
        //6.獲取消息
        while (true) {
            QueueingConsumer.Delivery delivery = queueingConsumer.nextDelivery();
            String message = new String(delivery.getBody());
            System.out.println("[消費者1] received message : '" + message + "'");
            //休眠10毫秒
            Thread.sleep(10);
            //返回確認狀態
            channel.basicAck(delivery.getEnvelope().getDeliveryTag(), false);
        }
    }
}

消費者2:

package org.alva.RabbitMQ.DirectExchange;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.QueueingConsumer;
import org.alva.Utils.ConnectionUtil;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * <一句話描述>,消費者
 * <詳細介紹>,路由模式下的消費者2
 *
 */
public class Consumer2 {
    public static final String QUEUE_NAME = "direct_queue_2";

    public static final String EXCHANGE_NAME = "direct_exchange";

    public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {
        //1.獲取連接
        Connection connection = ConnectionUtil.getConnection("localhost", 5672, "/", "guest", "guest");
        //2.聲明信道
        Channel channel = connection.createChannel();
        //3.聲明隊列
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        //4.綁定隊列到交換器,指定路由key為select
        channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "select");
        //同一時刻服務器只會發送一條消息給消費者
        channel.basicQos(1);

        //5.定義隊列的消費者
        QueueingConsumer queueingConsumer = new QueueingConsumer(channel);
        //5.監聽隊列,手動返回完成狀態
        channel.basicConsume(QUEUE_NAME, false, queueingConsumer);
        //6.獲取消息
        while (true) {
            QueueingConsumer.Delivery delivery = queueingConsumer.nextDelivery();
            String message = new String(delivery.getBody());
            System.out.println("[消費者1] received message : '" + message + "'");
            //休眠10毫秒
            Thread.sleep(10);
            //返回確認狀態
            channel.basicAck(delivery.getEnvelope().getDeliveryTag(), false);
        }
    }
}

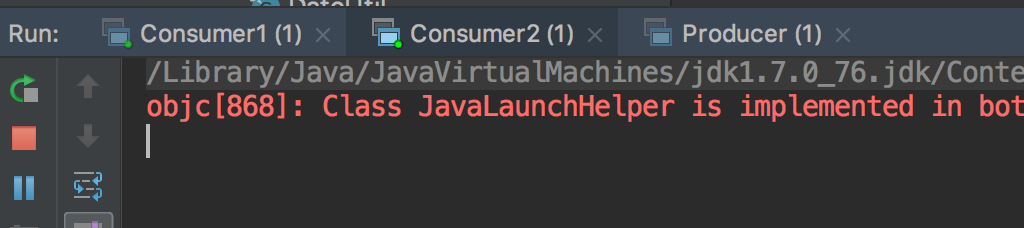

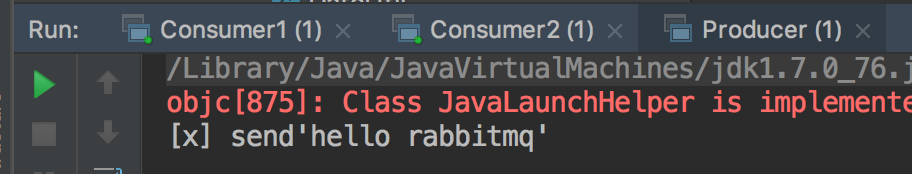

測試結果

生產者發布消息,指定的路由key為update,消費者1綁定隊列和交換器時key分別是update/delete/add;消費者2綁定隊列和交換器時key時select.

所以可以猜到生產者發送的消息,只有消費者1能夠接收並消費,而消費者2是不能接收的.
應用場景

利用消費者能夠有選擇性的接收消息的特性,比如商場系統的后台管理系統對於商品進行修改、刪除、新增操作都需要更新前台系統的界面展示,而查詢操作不需要,那么這兩個隊列分開接收消息就比較好.

5.主題模式

上面的路由模式是根據路由key進行完整的匹配(完全相等才發送消息),這里的通配符模式通俗的來講就是模糊匹配.

符號"#"表示匹配一個或多個詞,符號"*"表示匹配一個詞.

生產者

package org.alva.RabbitMQ.TopicExchange;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import org.alva.Utils.ConnectionUtil;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * <一句話描述>,主題模式下的生產者
 * <詳細介紹>,
 *
 */
public class Producer {
    private final static String EXCHANGE_NAME = "topic_exchange";

    public static void main(String[] args) throws IOException, TimeoutException {
        //1.獲取連接
        Connection connection = ConnectionUtil.getConnection("localhost", 5674, "/", "guest", "guest");
        //2.聲明信道
        Channel channel = connection.createChannel();
        //3.聲明交換器,類型為direct
        channel.exchangeDeclare(EXCHANGE_NAME, "topic");
        //4.定義消息內容
        String message = "hello rabbitmq";
        //5.發布消息
        channel.basicPublish(EXCHANGE_NAME, "update.Name", null, message.getBytes());
        System.out.println("[x] send'" + message + "'");
        //6.關閉通道和連接
        channel.close();
        connection.close();

    }
}

消費者1

package org.alva.RabbitMQ.TopicExchange;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.QueueingConsumer;
import org.alva.Utils.ConnectionUtil;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * <一句話描述>,消費者
 * <詳細介紹>,主題模式下的消費者1
 *
 */
public class Consumer1 {
    public static final String QUEUE_NAME = "topic_queue_1";

    public static final String EXCHANGE_NAME = "topic_exchange";

    public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {
        //1.獲取連接
        Connection connection = ConnectionUtil.getConnection("localhost", 5673, "/", "guest", "guest");
        //2.聲明信道
        Channel channel = connection.createChannel();
        //3.聲明隊列
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        //4.綁定隊列到交換器,指定路由key為update
        channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "update.#");
        //同一時刻服務器只會發送一條消息給消費者
        channel.basicQos(1);

        //5.定義隊列的消費者
        QueueingConsumer queueingConsumer = new QueueingConsumer(channel);
        //5.監聽隊列,手動返回完成狀態
        channel.basicConsume(QUEUE_NAME, false, queueingConsumer);
        //6.獲取消息
        while (true) {
            QueueingConsumer.Delivery delivery = queueingConsumer.nextDelivery();
            String message = new String(delivery.getBody());
            System.out.println("[消費者1] received message : '" + message + "'");
            //休眠10毫秒
            Thread.sleep(10);
            //返回確認狀態
            channel.basicAck(delivery.getEnvelope().getDeliveryTag(), false);
        }
    }
}

消費者2

package org.alva.RabbitMQ.TopicExchange;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.QueueingConsumer;
import org.alva.Utils.ConnectionUtil;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * <一句話描述>,消費者
 * <詳細介紹>,主題模式下的消費者2
 *
 * @author 穆國超
 * @since 設計wiki | 需求wiki
 */
public class Consumer2 {
    public static final String QUEUE_NAME = "topic_queue_2";

    public static final String EXCHANGE_NAME = "topic_exchange";

    public static void main(String[] args) throws IOException, TimeoutException, InterruptedException {
        //1.獲取連接
        Connection connection = ConnectionUtil.getConnection("localhost", 5672, "/", "guest", "guest");
        //2.聲明信道
        Channel channel = connection.createChannel();
        //3.聲明隊列
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        //4.綁定隊列到交換器,指定路由key為select
        channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "select.#");
        //同一時刻服務器只會發送一條消息給消費者
        channel.basicQos(1);

        //5.定義隊列的消費者
        QueueingConsumer queueingConsumer = new QueueingConsumer(channel);
        //5.監聽隊列,手動返回完成狀態
        channel.basicConsume(QUEUE_NAME, false, queueingConsumer);
        //6.獲取消息
        while (true) {
            QueueingConsumer.Delivery delivery = queueingConsumer.nextDelivery();
            String message = new String(delivery.getBody());
            System.out.println("[消費者1] received message : '" + message + "'");
            //休眠10毫秒
            Thread.sleep(1000);
            //返回確認狀態
            channel.basicAck(delivery.getEnvelope().getDeliveryTag(), false);
        }
    }
}

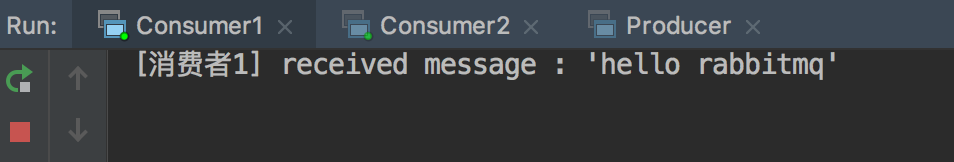

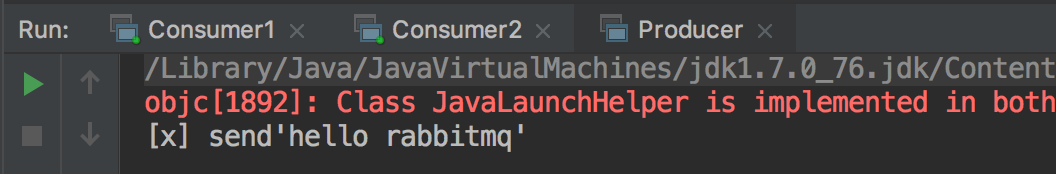

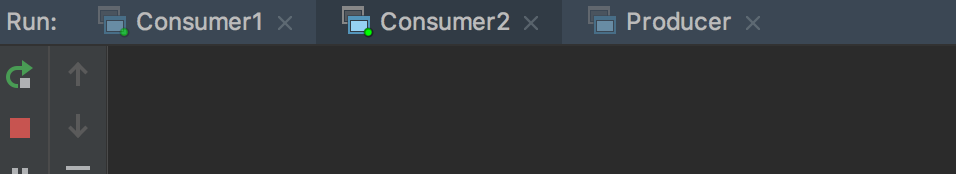

分析結果

生產者發送消息綁定的路由key為update.Name;消費者1監聽的隊列和交換器綁定路由key為update.#;消費者2監聽的隊列和交換器綁定路由key為select.#.

很顯然,消費者1會接收到消息,而消費者2接收不到

6.四種交換器

前面介紹了五種隊列模式,但是實際上只有三種,第一種簡單隊列,第二種工作模式,剩下的三種都是和交換器綁定的合起來稱為一種,這節詳細介紹交換器.

交換器分為四種,分別是:direct,fanout,topic和headers.

前三種分別對應路由模式,發布訂閱模式和通配符模式,headers交換器允許匹配AMQP消息的header而非路由鍵,除此之外,header交換器和direct交換器完全一致,但是性能卻差很多,因此基本上不會用到該交換器,這不做詳細介紹.

direct

如果路由鍵完全匹配的話,消息才會被投放到相應的隊列.
fanout

當發送一條消息到fanout交換器上時,它會把消息投放到所有附加在此交換器的上的隊列.
topic

設置模糊的綁定方式,"*"操作符將"."視為分隔符,匹配單個字符;"#"操作符沒有分塊的概念,它將任意"."均視為關鍵字的匹配部分,能夠匹配多個字符.

7.總結

關於RabbitMQ的五種隊列,其實實際使用最多的是最后一種主題模式,通過模糊匹配,使得操作更加自如.

免責聲明！

本站轉載的文章為個人學習借鑒使用，本站對版權不負任何法律責任。如果侵犯了您的隱私權益，請聯系本站郵箱yoyou2525@163.com刪除。

猜您在找 詳解RabbitMQ的五種工作模式 RabbitMQ簡介和六種工作模式詳解 RabbitMQ詳解三-RabbitMQ的五種隊列 RabbitMQ詳解（三）------RabbitMQ的五種隊列 RabbitMQ 五種模式 RabbitMQ五種工作模式 Rabbitmq的五種模式和案例 RabbitMq 6種使用模式 Rabbitmq的五種模式和案例 RabbitMQ 五種工作模式
